Locating Pins - Straight, Tapered (Press Fit)
Brand :
MISUMI
Caution
- The appearances of some products may be changed starting from August 2025. See the link below for details.
Information on Locating Pin Appearance Change - Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
- Locating Pins - Large Head, Tapered (Threaded) from MISUMI.
- Large Head, Tapered, Press Fit + Lock Nut Shape. Improved maintainability compared to Press Fit Type.
- The material of pin can be selected 3 types, steel SKS3 Equivalent, stainless steel SUS304, SUS440C or 13Cr stainless.
- SUS440C or 13Cr stainless has an identification groove at any position on D part.
- Polishing and centering hole sometimes not available for SUS304.
- Provided 2 options of alteration, Wrench Hole Machining (LAC), or Wrench Flats (SC).

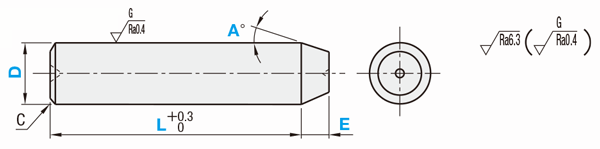

● Press Fit
[ ! ] For SUS440C or 13Cr stainless steel, an identification groove is provided at any position on D part.
[ ! ] On some combination of dimensions, the center hole may not be available.
[ ! ] SUS304 products may not be polished and have no centering hole.
[ ! ] For SUS440C or 13Cr stainless steel, an identification groove is provided at any position on D part.
[ ! ] On some combination of dimensions, the center hole may not be available.
[ ! ] SUS304 products may not be polished and have no centering hole.
| Material No. | [ M ] Material | [ S ] Surface Treatment | [ H ] Hardness | Type | |
| D Fixed | D Configurable | ||||
| (1) | SKS3 Equivalent | - | Treated Hardness: 60 to 63 HRC | LPSTA | FLPSTA |
| (2) | SKS3 Equivalent | Hard Chrome Plating | Treaded Hardness: 50 to 55 HRC Plating Hardness: 750 HV or more | GLPSTA | FGLPSTA |
| (3) | SKS3 Equivalent | - | - | BLPSTA | FBLPSTA |
| (4) | SUS304 | - | - | SLPSTA | FSLPSTA |
| (5) | SUS304 | Hard Chrome Plating | Plating Hardness: 750 HV or more | HLPSTA | FHLPSTA |
| (6) | SUS440C or 13Cr Stainless Steel | - | Treaded Hardness: 50 to 55 HRC | CLPSTA | FCLPSTA |
