Fulcrum Pins - Selectable / Configurable - Straight
Brand :
MISUMI
Caution
Product Description
Selectable from 4 types of head shape.
·Selectable Type ·Configurable Type
| Selectable Type | Configurable Type | [M] Material | [H] Hardness | [S] Surface Treatment | |||
| Standard Grade | Precision Grade | Standard Grade | |||||
| D | −0.01 −0.05 | Dg6 | D | −0.01 −0.05 | |||
| CBBD | — | FCBBD | S45C Equivalent | — | Black Oxide | ||
| CBBDH | — | FCBBDH | 40 to 45HRC | ||||
| — | — | FCBMD | — | Electroless Nickel Plating | |||
| — | — | FCBMDH | 40 to 45HRC | ||||
| — | — | FCBSD | SUS304 | — | — | ||
| CBD | CBDG | FCBD | SUS303 Equivalent | — | |||
| — | — | FCBDH | SUS440C or 13Cr Stainless Steel | 45 to 50HRC | |||

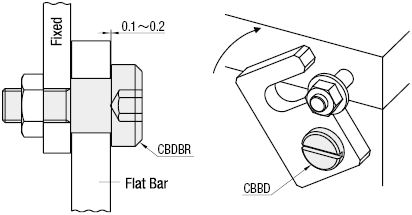

App. Example
