Shaft Collar For Bearing Mounting (Space-Saving Design) - Set Screw / Compact, Set Screw (SCSBS10-16)

Name: Shaft Collar For Bearing Mounting (Space-Saving Design) - Set Screw / Compact, Set Screw
Brand: MISUMI
Price: 131.64 THB
Availability: PreOrder

SET COLLAR

Shaft Collar For Bearing Mounting (Space-Saving Design) - Set Screw / Compact, Set Screw (SCSBS10-16)

Compare This Product

Volume Discount

Brand :

MISUMI

Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

For holding the inner diameter of the bearing. Compared to bearing-specific nuts, special tools are not required and it is cheaper. Compared to the set screw type, it is up to 40% more compact in width (B dimension) and 19% more compact in outer diameter (D1 dimension).

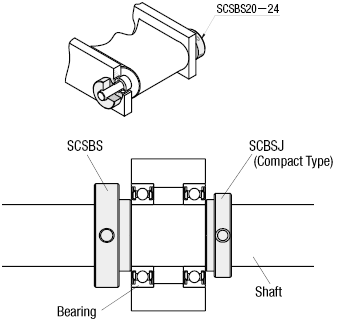

Shaft Collars/For Bearing Mounting/Set Screw Type/Compact/Short Shoulder:Related Image

Type				[ M ]Material	[ S ]Surface Treatment	[ A ]Accessories
Short Shoulder		Long Shoulder
Standard	Compact	Standard	Compact
SCSBR	SCBRJ	SCSBS	SCBSJ	S45C Equivalent	Black Oxide Coating	Set Screw 2 pcs.
PSCSBR	PSCBRJ	PSCSBS	PSCBSJ	S45C Equivalent	Electroless Nickel Plating	Set Screw 2 pcs. (SUS)
SSCSBR	SSCBRJ	SSCSBS	SSCBSJ	SUS304 Equivalent	-
SCSRAW	-	SCSSAW	-	2000series Aluminum Alloy	Clear Anodize

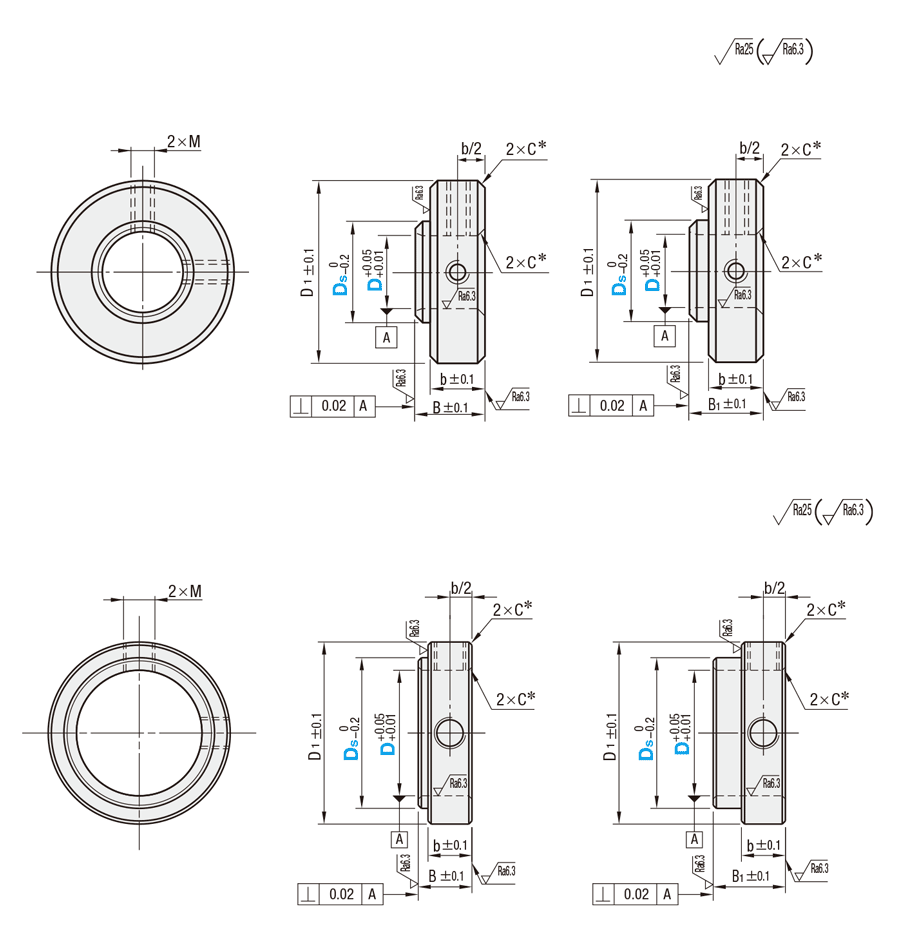

Specifications

Part Number	-	Ds
SCBRJ10	-	13

D	D_s	B (Short Shoulder)		D₁		Set Screw M x Length		b		Applicable Bearing (O.D.)		S45C Equivalent				SUS304 Equivalent		2000series Aluminum Alloy
		B (Short Shoulder)		D₁		Set Screw M x Length		b		Applicable Bearing (O.D.)		Black Oxide Coating		Electroless Nickel Plating		-		Clear Anodize
		Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	SCSBR (Standard)	SCBRJ (Compact)	PSCSBR (Standard)	PSCBRJ (Compact)	SSCSBR (Standard)	SSCBRJ (Compact)	SCSRAW (Standard)
3-	5	8	-	10	-	M3x3	-	7	-	673ZZ (6), 683ZZ (7)	-	●	-	●	-	●	-	-
	6	8	-	10	-	M3x3	-	7	-	693ZZ (8), 603ZZ (9), 623ZZ (10)	-	●	-	-	-	●	-	-
4-	6	8	-	12	-	M3x3	-	7	-	674ZZ (7), 684ZZ (9)	-	●	-	●	-	●	-	-
	7	8	6	12	10	M3x3	M3x3	7	5	694ZZ (11), 604ZZ (12), 624ZZ (13)	684ZZ (9), 694ZZ (11), 604ZZ (12), 624ZZ (13)	●	●	●	●	●	●	●
5-	7	8	-	14	-	M4x3	-	7	-	675ZZ (8)	-	●	-	●	-	●	-	-
	8	8	6	14	12	M4x3	M3x3	7	5	685ZZ (11), 695ZZ (13), 605ZZ (14), 625ZZ (16)	695ZZ (13), 605ZZ (14), 625ZZ (16)	●	●	●	●	●	●	●
6-	8	8	-	15	-	M4x3	-	7	-	676ZZ (10), 686ZZ (13)	-	●	-	●	-	●	-	-
	9	8	6	15	13	M4x3	M3x3	7	5	696ZZ (15), 606ZZ (17), 626ZZ (19)	676ZZ (10), 686ZZ (13), 696ZZ (15), 606ZZ (17), 626ZZ (19)	●	●	●	●	●	●	●
8-	11	10	-	16	-	M4x3	-	8.5	-	688ZZ (16)	-	●	-	●	-	●	-	-
	12	10	6	16	15	M4x3	M3x3	8.5	5	698ZZ (19), 608ZZ (22), 628ZZ (24)	688ZZ (16), 698ZZ (19), 608ZZ (22), 628ZZ (24)	●	●	●	●	●	●	●
10-	13	10	7.5	18	17	M4x3	M3x3	8.5	6	6800ZZ (19)	6800ZZ(19)	●	●	●	●	●	●	●
	14	10	7.5	18	17	M4x3	M3x3	8.5	6	6900ZZ (22), 6000ZZ (26)	6900ZZ (22), 6000ZZ (26)	●	●	●	●	●	●	●
	16	10	7.5	20	17	M4x3	M3x3	8.5	6	6200ZZ (30), 6300ZZ (35)	6200ZZ (30), 6300ZZ (35)	●	●	●	●	●	●	-
12-	15	10	7.5	22	19	M5x4	M4x3	8.5	6	6801ZZ (21)	6701ZZ (18), 6801ZZ (21)	●	●	●	●	●	●	-
	16	10	7.5	22	19	M5x4	M4x3	8.5	6	6901ZZ (24), 6001ZZ (28)	6901ZZ (24), 6001ZZ (28)	●	●	●	●	●	●	●
	18	10	7.5	22	19	M5x4	M4x3	8.5	6	6201ZZ (32), 6301ZZ (37)	6201ZZ (32), 6301ZZ (37)	●	●	●	●	●	●	●
15-	18	10	7.5	25	22	M5x4	M4x3	8.5	6	6802ZZ (24), 6902ZZ (28)	6802ZZ (24), 6902ZZ (28)	●	●	●	●	●	●	●
	19	10	7.5	25	22	M5x4	M4x3	8.5	6	6002ZZ (32)	6002ZZ (32)	●	●	●	●	●	●	●
	21	10	7.5	25	22	M5x4	M4x3	8.5	6	6202ZZ (35), 6302ZZ (42)	6202ZZ (35), 6302ZZ (42)	●	●	●	●	●	●	●
20-	23	12	8.5	32	29	M6x5	M5x4	10	7	6704ZZ (27), 6804ZZ (32)	6704ZZ (27), 6804ZZ (32)	●	●	●	●	●	●	-
	24	12	8.5	32	29	M6x5	M5x4	10	7	6904ZZ (37)	6904ZZ (37)	●	●	●	●	●	●	●
	27	12	8.5	32	29	M6x5	M5x4	10	7	6004ZZ (42), 6204ZZ (47)	6004ZZ (42), 6204ZZ (47)	●	●	●	●	●	●	●
25-	28	12	-	42	-	M6x5	-	10	-	6805ZZ (37)	-	●	-	●	-	●	-	-
	29	12	8.5	42	34	M6x5	M5x4	10	7	6905ZZ (42)	6905ZZ (42)	●	●	●	●	●	●	●
	31	12	8.5	42	34	M6x5	M5x4	10	7	6005ZZ (47)	6005ZZ (47)	●	●	●	●	●	●	●
	32	12	8.5	42	34	M6x5	M5x4	10	7	6205ZZ (52)	6205ZZ (52), 6305ZZ (62)	●	●	●	●	●	●	●
30-	33	15.5	-	45	-	M8x6	-	13	-	6806ZZ (42)	-	●	-	●	-	●	-	-
	35	15.5	10	45	41	M8x6	M6x5	13	8	6906ZZ (47)	6906ZZ (47)	●	●	●	●	●	●	-
	38	15.5	10	45	41	M8x6	M6x5	13	8	6006ZZ (55), 6206ZZ (62), 6306ZZ (72)	6006ZZ (55), 6206ZZ (62), 6306ZZ (72)	●	●	●	●	●	●	●

D	D_s	B₁ (Long Shoulder)		D₁		Set Screw M x Length		b		Applicable Bearing (O.D.)		S45C Equivalent				SUS304 Equivalent		2000series Aluminum Alloy
		B₁ (Long Shoulder)		D₁		Set Screw M x Length		b		Applicable Bearing (O.D.)		Black Oxide Coating		Electroless Nickel Plating		-		Clear Anodize
		Standard	Compact	Standard	Compact	Standard	Compact	Standard	Compact	Standard Type	Compact Type	SCSBS (Standard)	SCBSJ (Compact)	PSCSBS (Standard)	PSCBSJ (Compact)	SSCSBS (Standard)	SSCBSJ (Compact)	SCSSAW (Standard)
3-	5	11	-	10	-	M3x3	-	7	-	673ZZ (6), 683ZZ (7)	-	●	-	●	-	●	-	-
	6	11	-	10	-	M3x3	-	7	-	693ZZ (8), 603ZZ (9), 623ZZ (10)	-	●	-	-	-	●	-	-
4-	6	11	-	12	-	M3x3	-	7	-	674ZZ (7), 684ZZ (9)	-	●	-	●	-	●	-	-
	7	11	9	12	10	M3x3	M3x3	7	5	694ZZ (11), 604ZZ (12), 624ZZ (13)	684ZZ (9), 694ZZ (11), 604ZZ (12), 624ZZ (13)	●	●	●	●	●	●	●
5-	7	11	-	14	-	M4x3	-	7	-	675ZZ (8)	-	●	-	●	-	●	-	-
	8	11	9	14	12	M4x3	M3x3	7	5	685ZZ (11), 695ZZ (13), 605ZZ (14), 625ZZ (16)	695ZZ (13), 605ZZ (14), 625ZZ (16)	●	●	●	●	●	●	●
6-	8	11	-	15	-	M4x3	-	7	-	676ZZ (10), 686ZZ (13)	-	●	-	●	-	●	-	-
	9	11	9	15	13	M4x3	M3x3	7	5	696ZZ (15), 606ZZ (17), 626ZZ (19)	676ZZ (10), 686ZZ (13), 696ZZ (15), 606ZZ (17), 626ZZ (19)	●	●	●	●	●	●	●
8-	11	12.5	-	16	-	M4x3	-	8.5	-	688ZZ (16)	-	●	-	●	-	●	-	-
	12	12.5	9	16	15	M4x3	M3x3	8.5	5	698ZZ (19), 608ZZ (22), 628ZZ (24)	688ZZ (16), 698ZZ (19), 608ZZ (22), 628ZZ (24)	●	●	●	●	●	●	●
10-	13	12.5	10	18	17	M4x3	M3x3	8.5	6	6800ZZ (19)	6800ZZ (19)	●	●	●	●	●	●	●
	14	12.5	10	18	17	M4x3	M3x3	8.5	6	6900ZZ (22), 6000ZZ (26)	6900ZZ (22), 6000ZZ (26)	●	●	●	●	●	●	●
	16	12.5	10	20	17	M4x3	M3x3	8.5	6	6200ZZ (30), 6300ZZ (35)	6200ZZ (30), 6300ZZ (35)	●	●	●	●	●	●	-
12-	15	12.5	10	22	19	M5x4	M4x3	8.5	6	6801ZZ (21)	6701ZZ (18), 6801ZZ (21)	●	●	●	●	●	●	-
	16	12.5	10	22	19	M5x4	M4x3	8.5	6	6901ZZ (24), 6001ZZ (28)	6901ZZ (24), 6001ZZ (28)	●	●	●	●	●	●	●
	18	12.5	10	22	19	M5x4	M4x3	8.5	6	6201ZZ (32), 6301ZZ (37)	6201ZZ (32), 6301ZZ (37)	●	●	●	●	●	●	●
15-	18	12.5	10	25	22	M5x4	M4x3	8.5	6	6802ZZ (24), 6902ZZ (28)	6802ZZ (24), 6902ZZ (28)	●	●	●	●	●	●	●
	19	12.5	10	25	22	M5x4	M4x3	8.5	6	6002ZZ (32)	6002ZZ (32)	●	●	●	●	●	●	●
	21	12.5	10	25	22	M5x4	M4x3	8.5	6	6202ZZ (35), 6302ZZ (42)	6202ZZ (35), 6302ZZ (42)	●	●	●	●	●	●	●
17-	20	12.5	10	27	24	M5x4	M4x3	8.5	6	6803ZZ (26)	6803ZZ (26)	●	●	●	●	-	●	-
	21	12.5	10	27	24	M5x4	M4x3	8.5	6	6903ZZ (30), 6003ZZ (35)	6903ZZ (30), 6003ZZ (35)	●	●	●	●	●	●	●
	23	12.5	10	27	24	M5x4	M4x3	8.5	6	6203ZZ (40), 6303ZZ (47)	6203ZZ (40), 6303ZZ (47)	●	●	●	●	●	●	●
20-	23	15	12	32	29	M6x5	M5x4	10	7	6704ZZ (27), 6804ZZ (32)	6704ZZ (27), 6804ZZ (32)	●	●	●	●	●	●	-
	24	15	12	32	29	M6x5	M5x4	10	7	6904ZZ (37)	6904ZZ (37)	●	●	●	●	●	●	●
	27	15	12	32	29	M6x5	M5x4	10	7	6004ZZ (42), 6204ZZ (47)	6004ZZ (42), 6204ZZ (47)	●	●	●	●	●	●	●
25-	28	15	-	42	-	M6x5	-	10	-	6805ZZ (37)	-	●	-	●	-	●	-	-
	29	15	12	42	34	M6x5	M5x4	10	7	6905ZZ (42)	6905ZZ (42)	●	●	●	●	●	●	●
	31	15	12	42	34	M6x5	M5x4	10	7	6005ZZ (47)	6005ZZ (47)	●	●	●	●	●	●	●
	32	15	12	42	34	M6x5	M5x4	10	7	6205ZZ (52)	6205ZZ (52), 6305ZZ (62)	●	●	●	●	●	●	●
30-	33	19	-	45	-	M8x6	-	13	-	6806ZZ (42)	-	●	-	●	-	●	-	-
	35	19	14	45	41	M8x6	M6x5	13	8	6906ZZ (47)	6906ZZ (47)	●	●	●	●	●	●	-
	38	19	14	45	41	M8x6	M6x5	13	8	6006ZZ (55), 6206ZZ (62), 6306ZZ (72)	6006ZZ (55), 6206ZZ (62), 6306ZZ (72)	●	●	●	●	●	●	●
35-	38	19	-	50	-	M8x6	-	13	-	6807ZZ (47)	-	●	-	●	-	●	-	-
	41	19	14	50	46	M8x6	M6x5	13	8	6907ZZ (55)	6907ZZ (55)	●	●	●	●	●	●	-
	43	19	14	50	46	M8x6	M6x5	13	8	6007ZZ (62), 6207ZZ (72)	6007ZZ (62), 6207ZZ (72)	●	●	●	●	●	●	-
40-	43	21	-	60	-	M10x8	-	15	-	6808ZZ (52)	-	●	-	-	-	●	-	-
	45	21	-	60	-	M10x8	-	15	-	6908ZZ (62)	-	●	-	-	-	●	-	-
	48	21	16	60	53	M10x8	M8x6	15	10	6008ZZ (68), 6208ZZ (80)	6008ZZ (68), 6208ZZ (80)	●	●	●	●	●	●	-
