Solid Disk Handwheels/Cost Efficient Product

Brand :
MISUMI

Caution

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

[Features]·A general-purpose standard solid handwheel. ·A shaft hole fixed type.

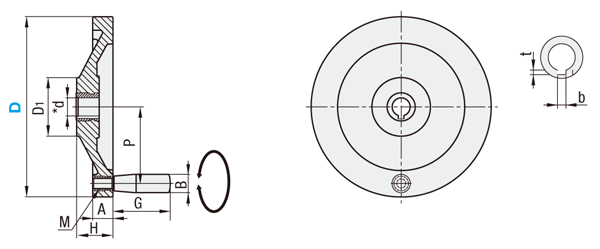

Dimensional Drawing

Shaft Bore/Keyway Details

[ ! ] The *d part is H7 Hole.
TypeHandwheelBushingHandle Mounting HoleHandleHandle Thread
[ M ]Material[ M ]Material[ S ]Surface Treatment[ M ]Material[ M ]Material[ M ]Material[ S ]Surface Treatment
C－PHSNPhenol ResinS45CZinc PlatingBrassPhenol ResinCarbon Steel for Mechanical StructureZinc Plating
