Flat Belts-With Meandering Prevention Crosspiece General Use
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
Flat Belts-With Meandering Prevention Crosspiece General Use
This conveyor belt is ideal for use in both general purpose and mini belt conveyor systems, with a wide range of sizes available to choose from.
[Feature]
● Belt Width Minimum / Maximum (mm.) : 50 mm. and 500 mm.
● Thickness (mm.): 0.8, 1.4, 1.7, 2.1, 3.6, and 5.0
● Belt Length (m.) : The size is configurable between 0.5 to 20 m, and the minimum length can be increased by increments 0.01 m.
● Suitable for Minimum Pulley Belt Diameter Size (mm.) : 20, 25, 50, 100 and 120
● Surface Cover Material: Thermoplastic Polyurethane, Polyurethane and PVC
● Color: White, Green, Sky Blue and Lime Green
[Application]
It is used in conjunction with pulleys to transfer materials in a conveyor system.
| Crosspiece Shape | Pulley, Idler Relief Dimensions |
 |  |

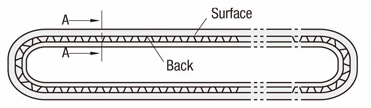

•Flat belts are weld-jointed before shipping.
•I.D. will be the Belt Length.
| Type | Thickness mm | Unit Mass kg/m2 | Min. Pulley Dia. Ømm |
| HBLTGCDSN | 2.1 | 2.3 | 50 |
| HBLTWCDSN | 2.1 | 2.3 | 50 |
| HBLGDST | 5 | 5.7 | 120 |
| HBLWDST | 5 | 5.7 | 120 |
| HBTDSTN | 3.6 | 4.1 | 100 |
| Type | Type No. | Color | Ply count | Surface Shape | Material | Friction Coefficient (Ref. Against Polished Steel) | Thickness mm | Unit Mass kg/m2 | Allowable Tension N/mm | Min. Pulley Dia. Ømm | Continuous Use Temperature °C | ||
| Surface | Back | Front | Back | ||||||||||
| HBLTDSG | Green | 1 | Flat surface | Polyurethane | Polyester | 0.8 | 0.2 | 0.8 | 0.7 | 4 | 20 | -30~80 | |
| HBLTDSW | White | 1 | Flat surface | Polyurethane | Polyester | 0.8 | 0.2 | 0.8 | 0.7 | 4 | 20 | -30~80 | |
| HBLTDS | Green | 2 | Flat surface | Polyurethane | Polyester | 0.8 | 0.2 | 1.4 | 1.5 | 8 | 25 | -30~80 | |
| HBLTGSDSN | Green | 2 | Flat surface | Thermoplastic Polyurethane | Polyester Canvas | 0.6 | 0.2 | 1.7 | 1.9 | 8 | 50 | -30~100 | |
| HBLBDSN | Sky Blue | 2 | Flat surface | Thermoplastic Polyurethane | Polyester Canvas | 0.6 | 0.2 | 1.4 | 1.3 | 3 | 20 | -30~100 | |
| HBLTGCDSN | Green | 2 | Flat surface | PVC | Polyester Canvas | 1.0 | 0.2 | 1.8 | 1.9 | 8 | 30 | -10~80 | |
| HBLTWCDSN | White | 2 | Flat surface | PVC | Polyester Canvas | 1.0 | 0.2 | 1.8 | 1.9 | 8 | 30 | -10~80 | |
| HBLGDST | Green | 3 | Flat surface | PVC | Polyester Canvas | 1.0 | 0.2 | 4.6 | 5 | 18 | 100 | -10~80 | |
| HBLWDST | White | 3 | Flat surface | PVC | Polyester Canvas | 1.0 | 0.2 | 4.6 | 5 | 18 | 100 | -10~80 | |
| HBTDSTN | Green | 2 | Flat surface | PVC | Polyester Canvas | 1.0 | 0.2 | 3.4 | 3.7 | 8 | 75 | -10~80 | |
| Type | Food hygienic properties | Antibacterial and Antifungal Property | Fray Prevention | Water / Moisture Resistance | Thermal Shrinkage Prevention | Surface Cleanability | Prevention of shrinkage due to imprinting | Sodium Hypochlorite Resistant | Anti-stick | Oil Resistance |
| HBLTDSG | ○ | - | ○ | ○ | ○ | - | - | ○ | - | ○ |
| HBLTDSW | ○ | - | ○ | ○ | ○ | - | - | ○ | - | ○ |
| HBLTDS | ○ | - | ○ | ○ | ○ | - | - | ○ | - | ○ |
| HBLTGSDSN | ○ | - | ○ | ○ | ○ | - | - | ○ | - | ○ |
| HBLBDSN | ○ | ○ | ○ | ○ | ○ | - | - | ○ | - | ○ |
| HBLTGCDSN | ○ *1 | - | ○ | - | - | - | - | ○ | - | ◎ |
| HBLTWCDSN | ○ *1 | - | ○ | - | - | - | - | ○ | - | ◎ |
| HBLGDST | ○ *1 | - | - | - | - | - | - | ○ | - | ◎ |
| HBLWDST | ○ *1 | - | - | - | - | - | - | ○ | - | ◎ |
| HBTDSTN | ○ *1 | - | ○ | - | - | - | - | ○ | - | ◎ |
◎: Best suited, ○: Applicable, △: May be applicable, -: Not applicable
