Product Description
Cable Carriers - Compact Type
Cable carriers are essential equipment used in automation machines to effectively organize and prevent the tangling and twisting of cables. They provide a wide range of sizes to choose from.
[Feature]
- Special Feature : Space-saving, design for guiding even for only one cable/hose. The flaps do not open.
- Inner Height (mm.) : 9 and 16
- Inner Width (mm.) : 9, 18, 24, 29 and 44
- Bending Radius (mm.) : 19, 30, 38, 45, and 50
- Number of links (Pcs.) : can select between 5 and 36
- Pitch (mm.) : 20, 25 and 32
- Material: Nylon6 + Glass Fiber 20%
[Application]
It is used in automation machines to organize and prevent issues from the cable tangling and twisting.
| Type | Main Body | Mounting Bracket | ||
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
| Cable Carrier + Mounting Bracket | MHPKS | Nylon 6 + Glass Fiber 20% (Operating Temperature -10~80°C) Flammability Standard UL94-HB Equivalent | SPCC | Trivalent Bright Chromate Plating |
More Information

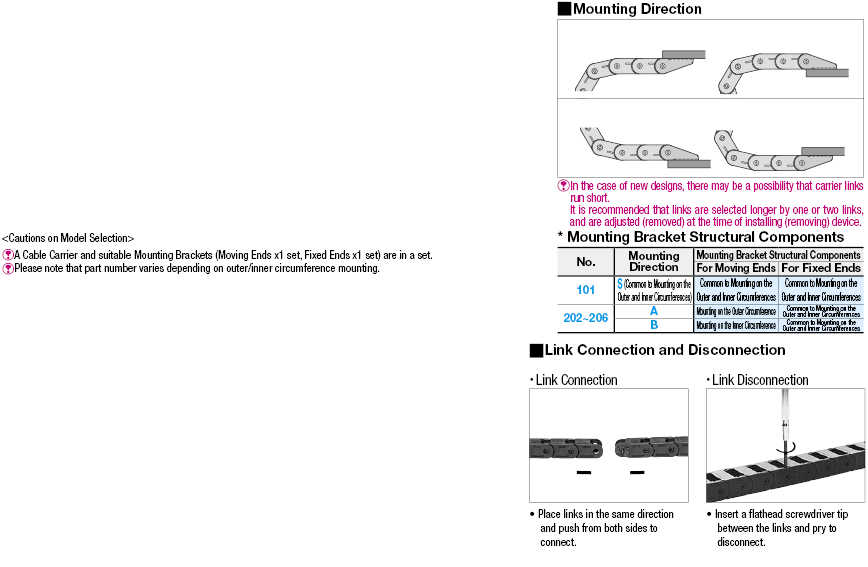

For Moving Ends
• Mounting on the Outer
Circumference
• Mounting on the Inner
Circumference
For Fixed Ends
• Mounting on the Outer
Circumference
• Mounting on the Inner
Circumference
