O-Ring P Series【1-200 Pieces Per Package】

O-Ring P Series
CAD Data unavailable
  • On Sale Until 30/04/2021
  • Volume Discount
  • Starting From :
    600.00฿/Unit
  • CAD Data unavailable
  • Product Description

    For O-ring, many pieces are sold by single package! Use this package product for bulk use or as the stock.

    Part Number :
    Oリング Pシリーズ:Related Image

    Type[ M ]Material [ H ]Hardness (JIS Hs) ColorOperable Temperature RangeJIS SymbolApplication
    PACK-NPANitrile Rubber70±8Black-30 ~ 100°CEquivalent to Class 1 Grade AMineral Oil Resistant
    * Most representative material with superior oil / abrasion resistance and heat stability.

    Specifications

    Part Number (Type ∙ No.)
    PACK-NPA10
    ■ P Series (For Mounting, Dynamic)
    Part NumberJIS
    Nominal Number
    WI.D.Matching MaterialPcs. per Package
    TypeNo.doTolerancedToleranceDTolerance
    PACK-NPA3P31.9
    ±0.08
    2.8±0.1430
    -0.05
    6+0.05
    0
    200
    4P43.847
    5P54.8±0.1558
    6P65.869
    7P76.8±0.16710
    8P87.8811
    9P98.8±0.17912
    10P109.81013
    10AP10A2.4
    ±0.09
    9.8100
    -0.06
    14+0.06
    0
    11P1110.8±0.181115
    11.2P11.21111.215.2
    12P1211.8±0.191216
    12.5P12.512.312.516.5
    14P1413.81418
    15P1514.8±0.201519

    Part NumberJIS
    Nominal Number
    WI.D.Matching MaterialPcs. per Package
    TypeNo.doTolerancedToleranceDTolerance
    PACK-NPA16P162.4
    ±0.09
    15.8±0.20160
    -0.06
    20+0.06
    0
    200
    18P1817.8±0.211822
    20P2019.8±0.222024
    21P2120.8±0.232125
    22P2221.8±0.242226
    22AP22A21.72228
    24P2423.72430
    25P2524.7±0.252531
    26P263.5
    ±0.01
    25.7±0.26260
    -0.08
    32+0.08
    0
    28P2827.7±0.282834
    30P3029.7±0.293036
    32P3231.7±0.313238
    44P4443.7±0.414450
    50AP50A5.7
    ±0.13
    49.7±0.45500
    -0.1
    60+0.1
    0

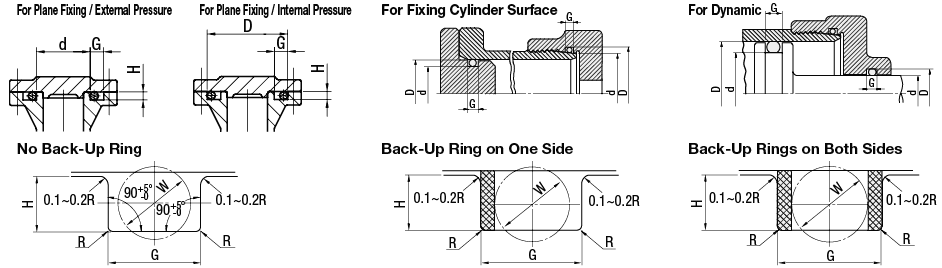

    ■ P Series Detailed Fitting Size
    ①To fix a plane: If an internal pressure is exerted, install O-Ring so that the perimeter of the O-ring contacts with the external wall of the groove; If an external pressure is exerted, install O-ring so that the internal circumference of the O-Ring contacts with the internal wall of the groove.
    ②To fix a plane in consideration of the internal pressure, provide a margin of 0.2~0.3mm for Dimension D where Dimension D is 30mm or less.
    ③Slot Dimension is for reference only.
    TypeNo. G Dimension (ToleranceOリング Pシリーズ:Related Image) H Dimension
    H ±0.05
    R Dimension
    Max. Value
    No Back-Up
    Ring
    Back-Up Ring
    on One Side
    Back-Up Rings
    on Both Sides
    NPANPB3~102.53.95.41.40.4
    NPSWNPS10A~223.24.46.01.80.4
    NPFNPFH22A~444.76.07.82.70.8
    NPEGNPBR50A~807.59.011.54.60.9
    Part Number
    PACK-NPA3On Sale Until 30/04/2021
    PACK-NPA4
    PACK-NPA5
    PACK-NPA6
    PACK-NPA7
    PACK-NPA9
    PACK-NPA10A
    PACK-NPA11On Sale Until 30/04/2021
    PACK-NPA11.2On Sale Until 30/04/2021
    PACK-NPA12
    PACK-NPA12.5
    PACK-NPA14
    PACK-NPA15
    PACK-NPA18
    PACK-NPA20
    PACK-NPA21On Sale Until 30/04/2021
    PACK-NPA22On Sale Until 30/04/2021
    PACK-NPA22AOn Sale Until 30/04/2021
    PACK-NPA24
    PACK-NPA25
    PACK-NPA26On Sale Until 30/04/2021
    PACK-NPA28On Sale Until 30/04/2021
    PACK-NPA30On Sale Until 30/04/2021
    PACK-NPA32On Sale Until 30/04/2021
    PACK-NPA44On Sale Until 30/04/2021
    PACK-NPA50AOn Sale Until 30/04/2021
    Part NumberPriceMinimum Order Qty.Number of pc(s). included in pkg.Volume DiscountDays to ShipInner Dia. do (or d)
    (Ø)
    Wire Dia. W
    (mm)
    Material Code, JIS JIS Nominal Number

    600.00฿

    54.24฿

    1

    200 Pieces Per Package

    Available Same day 2.81.9Class 1 AP3

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 3.81.9Class 1 AP4

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 4.81.9Class 1 AP5

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 5.81.9Class 1 AP6

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 6.81.9Class 1 AP7

    600.00฿

    1 Available 3 Day(s) or more 8.81.9Class 1 AP9

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 9.82.4Class 1 AP10A

    600.00฿

    68.34฿

    1

    200 Pieces Per Package

    Available Same day 10.82.4Class 1 AP11

    600.00฿

    69.42฿

    1

    200 Pieces Per Package

    Available Same day 112.4Class 1 AP11.2

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 11.82.4Class 1 AP12

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 12.32.4Class 1 AP12.5

    600.00฿

    1

    200 Pieces Per Package

    Available Same day 13.82.4Class 1 AP14

    800.00฿

    1

    200 Pieces Per Package

    Available Same day 14.82.4Class 1 AP15

    800.00฿

    1

    200 Pieces Per Package

    Available Same day 17.82.4Class 1 AP18

    800.00฿

    1

    200 Pieces Per Package

    Available Same day 19.82.4Class 1 AP20

    800.00฿

    91.04฿

    1

    200 Pieces Per Package

    Available Same day 20.82.4Class 1 AP21

    800.00฿

    93.28฿

    1

    200 Pieces Per Package

    Available Same day 21.82.4Class 1 AP22

    1,000.00฿

    100.80฿

    1

    200 Pieces Per Package

    Available Same day 21.72.4Class 1 AP22A

    1,000.00฿

    1

    200 Pieces Per Package

    Available Same day 23.72.4Class 1 AP24

    1,000.00฿

    1

    200 Pieces Per Package

    Available Same day 24.72.4Class 1 AP25

    1,000.00฿

    110.50฿

    1

    200 Pieces Per Package

    Available Same day 25.73.5Class 1 AP26

    1,000.00฿

    118.00฿

    1

    200 Pieces Per Package

    Available Same day 27.73.5Class 1 AP28

    1,000.00฿

    122.90฿

    1

    200 Pieces Per Package

    Available Same day 29.73.5Class 1 AP30

    1,000.00฿

    128.00฿

    1

    200 Pieces Per Package

    Available Same day 31.73.5Class 1 AP32

    1,200.00฿

    171.36฿

    1

    200 Pieces Per Package

    Available Same day 43.73.5Class 1 AP44

    1,600.00฿

    335.52฿

    1

    200 Pieces Per Package

    Available Same day 49.75.7Class 1 AP50A

    Loading...

    1. 1

    More Information

    Oリング Pシリーズ:Related Image
    ①dimension tolerance compliant to JIS Standards; Hardness Tolerance widened in accordance with JIS Standards
    ②Sold by Package (200 pcs. per Package)


    Basic Information

    Type P Series Material Nitrile Rubber Application Mineral Oil Resistant
