Panel Clamping Bracket - 3mm and 5mm Panel Compatible
Brand :
MISUMI
Caution
Product Description
It can be easily installed by simply inserting the T-shaped stopper into the groove of the frame and turning it 90 degrees. Compatible with both 3mm and 5mm panel thicknesses.

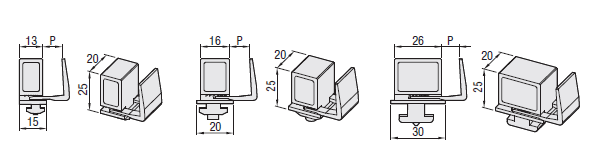

Dimensional Drawing of Panel Mounts
HCBS5
HCBS6
HCBS8
[ ! ] P section is movable, allowing adjustment of panel thickness.
[M] Material : Polyamide
Specification Table of Panel Mounts
| Model |
| HCBS8 |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Model | Mass | P Suitable panel thickness | |
| Type | No. | ||
| HCBS | 5 | 2.6 | 3〜5 |
| 6 | 3.9 | ||
| 8 | 6.3 | ||
How to Use Panel Mounts
■ Panel Mounts installation method
① Installation Panel Mounts to the frame
It can be easily installed by inserting the T-shaped fastener into the frame groove and turning it 90 degrees.

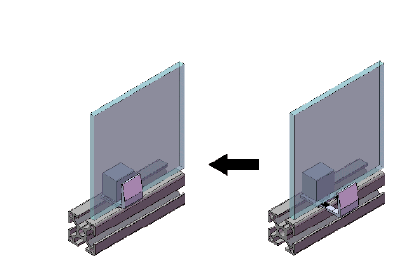

② Panel installation method
As shown in the right diagram, Panel Mounts is clamped to part P and the movable part is pressed against Panel Mounts to secure it in place, eliminating the need to drill holes in the panel.
