Configure

Part number has not been determine

(16 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

HRUA5-AC-[500-2000/1]-[300-900/1]

Extrusion No. Extrusion Size Panel Material Structural Extrusion Series H W type CAD Days to Ship

Specification/Dimensions

Extrusion No.
- 5
- 6
Clear
Extrusion Size
- 2020
- 3030
Clear
Panel Material
- Acrylic
- Antistatic PVC
- PET
- Polycarbonate
Clear
Structural Extrusion Series
- HFHRF
- HFS, HFHRF
Clear
H(mm)
[300-900/1mm Unit(s)]
Clear
W(mm)
[500-2000/1mm Unit(s)]
Clear
type
- HRUA
- HRUB
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

16 Day(s) or Less
Clear

Specify Alterations

Slide Door Units

Name: Slide Door Units
Brand: MISUMI
Availability: PreOrder

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Brand :

MISUMI

Part Number :

HRUA5-AC-[500-2000/1]-[300-900/1]

HRUA5-PC-[500-2000/1]-[300-900/1]

HRUA5-PY-[500-2000/1]-[300-900/1]

HRUA5-ST-[500-2000/1]-[300-900/1]

HRUA6-AC-[500-2000/1]-[300-900/1]

HRUA6-PC-[500-2000/1]-[300-900/1]

HRUA6-PY-[500-2000/1]-[300-900/1]

HRUA6-ST-[500-2000/1]-[300-900/1]

HRUB5-AC-[500-1900/1]-[300-900/1]

HRUB5-PC-[500-1900/1]-[300-900/1]

HRUB5-PY-[500-1900/1]-[300-900/1]

HRUB5-ST-[500-1900/1]-[300-900/1]

HRUB6-AC-[500-1900/1]-[300-900/1]

HRUB6-PC-[500-1900/1]-[300-900/1]

HRUB6-PY-[500-1900/1]-[300-900/1]

HRUB6-ST-[500-1900/1]-[300-900/1]

HRUA5-AC-[500-2000/1]-[300-900/1]

Price :

---
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

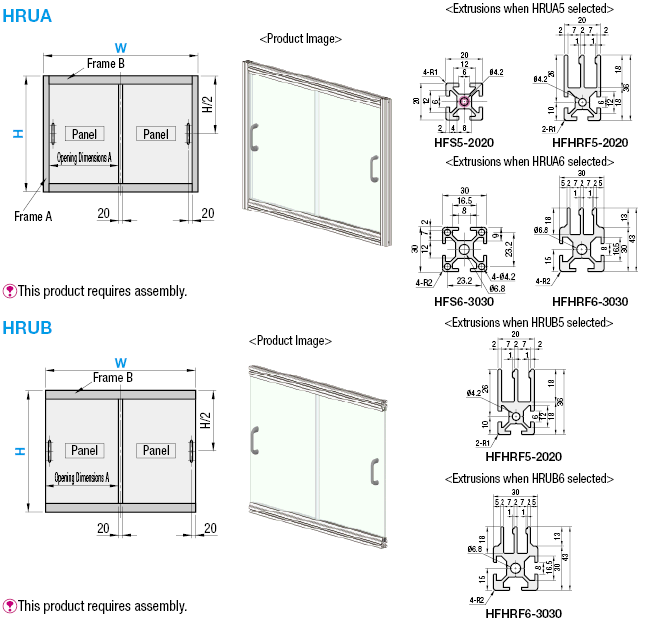

This is a set product that combines the parts necessary for making a sliding door unit. You can select the material and size of the panel.

Specifications

Part Number	-	Panel	-	W	-	H
HRUA6	-	AC	-	1200	-	750

Part Number

Panel
(Select a desired material and thickness from the codes below)

W (Width)
1mm increments

H (Height)
1mm increments

A
Opening Dimensions

Components

Frame A

Frame B

Fixing Parts

Slide Spacers

Handle

Type

No.

Part Number

Quantity

Part Number

Quantity

Part Number

Quantity

HRUA

Acrylic (Clear)
Polycarbonate (Clear)
PET (Clear)
Anti-static PVC (Clear)

AC(Thickness 5mm)
PC(Thickness 5mm)
PY(Thickness 5mm)
ST(Thickness 5mm)

500~2000

300~900

W/2-56.5

HFS5-2020

HFHRF5-2020

SCB5-25

HRLSP

HHDS90
(screws for Fixing)

W/2-66.5

HFS6-3030

HFHRF6-3030

SCB8-40

HRUB
(No Side Extrusion)

500~1900

300~900

W/2-36.5

HFHRF5-2020

HRLSP

HHDS90
(screws for Fixing)

HFHRF6-3030

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
HRUA5-AC-[500-2000/1]-[300-900/1]
HRUA5-PC-[500-2000/1]-[300-900/1]
HRUA5-PY-[500-2000/1]-[300-900/1]
HRUA5-ST-[500-2000/1]-[300-900/1]
HRUA6-AC-[500-2000/1]-[300-900/1]
HRUA6-PC-[500-2000/1]-[300-900/1]
HRUA6-PY-[500-2000/1]-[300-900/1]
HRUA6-ST-[500-2000/1]-[300-900/1]
HRUB5-AC-[500-1900/1]-[300-900/1]
HRUB5-PC-[500-1900/1]-[300-900/1]
HRUB5-PY-[500-1900/1]-[300-900/1]
HRUB5-ST-[500-1900/1]-[300-900/1]
HRUB6-AC-[500-1900/1]-[300-900/1]
HRUB6-PC-[500-1900/1]-[300-900/1]
HRUB6-PY-[500-1900/1]-[300-900/1]
HRUB6-ST-[500-1900/1]-[300-900/1]

Price	Name	Minimum Order Qty.	Days to Ship	RoHS	Extrusion No.	Extrusion Size	Panel Material	Structural Extrusion Series	H (mm)	W (mm)
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Acrylic	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Polycarbonate	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	PET	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Antistatic PVC	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Acrylic	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Polycarbonate	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	PET	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Antistatic PVC	HFS, HFHRF	300 ～ 900	500 ～ 2000
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Acrylic	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Polycarbonate	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	PET	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	5	2020	Antistatic PVC	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Acrylic	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Polycarbonate	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	PET	HFHRF	300 ～ 900	500 ～ 1900
-	SLIDING DOOR UNIT	1 Piece(s)	16 Day(s)	10	6	3030	Antistatic PVC	HFHRF	300 ～ 900	500 ～ 1900
