Manually Operated Units/Elavator Type
Brand :
MISUMI
Caution
Product Description
A simple positioning lifting unit suitable for vertical movement.
■Drawing
■Components
| Parts | Frame | Table | Elevator Table | Angle Plate |
| [ M ]Material | A6063S-T5 | A6063 | AC7A | AC7A |
| [ S ]Surface Treatment | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize |
| Parts | Trapezoidal Lead Screws | Trapezoidal Screw Nut | Nut Bracket | Side Plate |
| [ M ]Material | S45C | Brass | A5052 | A6063 |
| [ S ]Surface Treatment | Black Oxide | - | Clear Anodize | Clear Anodize |

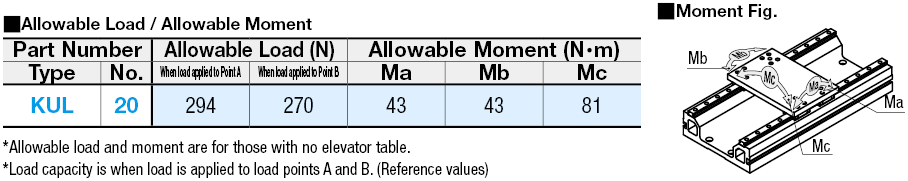

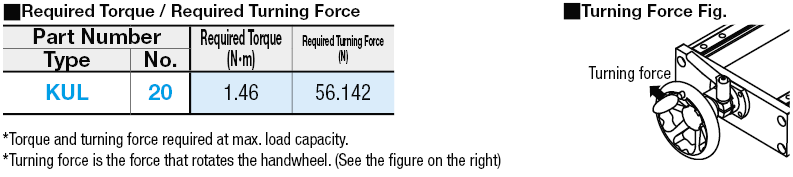

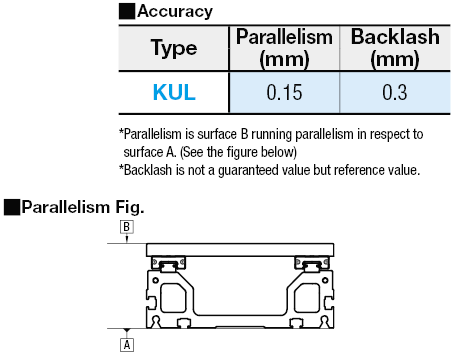

More Information
KUL
Arrow View A-A
Handwheel Type C
Handwheel Type A
Handwheel Type B
