Circular Type Cable Clamp for Aluminum Extrusion - 50pcs/Pack
Caution
Product Description
Use this product when wiring a cable through aluminum extrusions. 50pcs. per Pkg.
Dimensional Drawing of Clamps, Holders, Hooks
Clamps, Holders, Hooks HFCC5PACK-S(Light gray 50 pieces/pack)
HFCC5PACK-B(Black 50 pieces/pack)
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/drw_20.gif)
Clamps, Holders, Hooks HFCC6PACK-S(Light gray 50 pieces/pack)
HFCC6PACK-B(Black 50 pieces/pack)
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/drw_24.gif)
Clamps, Holders, Hooks HFCC8PACK-S(Light gray 50 pieces/pack)
HFCC8PACK-B(Black 50 pieces/pack)
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/drw_22.gif)
Clamps, Holders, Hooks HFCC10PACK-S(Light gray 50 pieces/pack)
HFCC10PACK-B(Black 50 pieces/pack)
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/drw_23.gif)
Specification Table of Clamps, Holders, Hooks
| Clamps, Holders, Hooks Model | − | color |
| HFCC6PACK | − | B |
HFCC8PACK | − | S |
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Clamps, Holders, Hooks Model | color | Compatible Frames (Series) | |
| Clamps, Holders, Hooks Type | No. | ||
| HFCC | 5PACK | S(light gray) B(Black) | 5 Series |
| 6PACK | 6 Series | ||
| 8PACK | 8 Series 8-45 Series | ||
| 10PACK | 10 Series | ||
[ ! ] Clamps, Holders, Hooks 50 pieces per pack.
[ ! ] If no color is specified, S light gray will be used.
Additional Processing of Clamps, Holders, Hooks
| Clamps, Holders, Hook Model | − | color | − | (SET) |
| HFCC6PACK | − | S | − | SET |
| Alteration | Clamps, Holders, Hook Code |
| Set of 300 | SET |
[ ! ]Please pay attention to the quantity when ordering.
300 pieces will be delivered for one order of Clamps, Holders, Hook HFCC5PACK-S-SET.
[ ! ]If you prefer, we can ship your order on the same day up until5:00 PM .
How to Use of Clamps, Holders, Hook
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/exp_20.jpg)
Installation Method of Clamps, Holders, Hook
Rotate 90°.
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/exp_21.gif)
[ ! ]

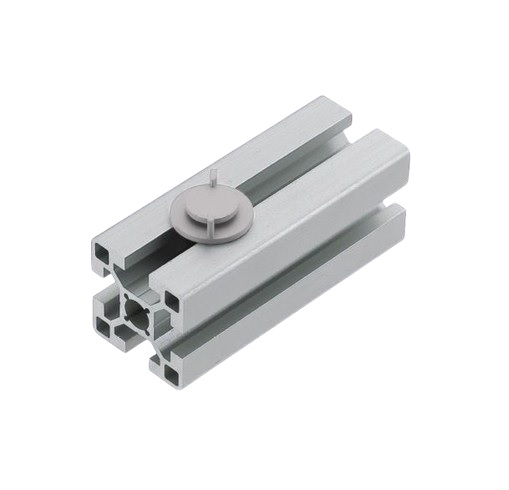

The cable can be fixed to the aluminum frame using the cable clamp .
Band binding range
![Cable clamp, diamond-shaped type [50-300 pieces]: Related images](http://th.misumi-ec.com/en/linked/item/10302265570/img/exp_22.gif)
[ ! ]Band is not included.
