Mini Counterbored Door Slider for Aluminum Frames
Brand :
MISUMI
Caution
Product Description
[MISUMI 'Door Sliders' Product]
Sliders for aluminum extrusions from MISUMI can be used to slide aluminum extrusions on each other.
[Specifications]
· Type: HFBFSZB (Counterbored Type Mini with Slot-T)
· Material: Polyacetal (White)
Dimensional Drawing of Door Sliders
[M] Door Sliders Material: Polyacetal (white)
Specification Table of Door Sliders
| Door Sliders Model |
| HFBFSZB6 |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
- There is no data available on the load-bearing capacity when workpieces or other items are placed on the aluminum frame.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Door Sliders Model | Compatible Frames (Series) | H | F | S | T | E | B | L | W | D | d | h | t | Applicable bolts and nuts | ||
| Door Sliders Type | No. | bolt | nut | |||||||||||||
| HFBFSZB | 6 | 6 Series | 5 | 2.5 | 7.8 | 5.3 | 3.5 | 14.1 | 26 | twenty four | 6.5 | 3.4 | 3.8 | 0.8 | CBM3-10 | HNTT6-3 |
| 8 | 8・8－45 Series | 6.3 | 9.8 | 4.5 | 2.5 | 19 | 34 | 30 | 8 | 4.5 | CBM4-12 | HNTT8-4 | ||||
How to Use of Door Sliders
■ Door Sliders Features

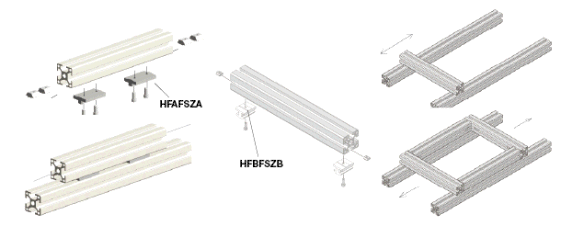

Combination use examples to Door Sliders aluminum frames together.
■ Combination use examples

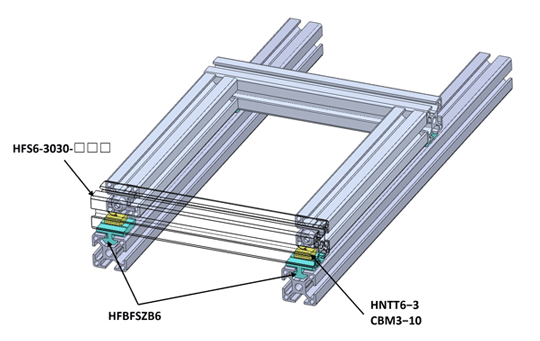

[ ! ]Stack the aluminum frames at right angles and Door Sliders them. Combination use examples to Door Sliders aluminum frames together.
■ Combination use examples
[ ! ]Align the protrusions with the grooves of the aluminum frames and secure them with the nuts for the aluminum frames.
[ ! ]When attaching a panel, etc., use the [Tap Type Door Sliders for Aluminum Frames] (see related parts).
Related Parts of Door Sliders
| Door Sliders, hanging doors, sliders | Screws and bolts | ||
| Category Page | Door Sliders, hanging doors, sliders | Screws and bolts | |
| Representative products | Tapped type Door Sliders for aluminum frames | Counterbore type Door Sliders for aluminum frames | Hexagonal socket bolt , nickel plated - single item, small box - |
| image |  |  |  |
