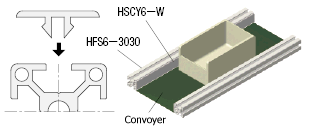

Aluminum Extrusion Plastic Side Cover - Friction Reducer

[ ! ]Depending on the size, the surface may be bulging.

Type	[M]Conveyor Parts Material	Heat-resistant temperature
HSCY□	Ultra-high molecular weight polyethylene	-100 to 80°C

■Conveyor Parts Characteristic values

item	unit	Number
specific gravity	−	0.96
Tensile strength	MPa	43
Tensile elongation	%	10
hardness	Rockwell R scale	60
Impact strength	Izod notch kJ/m	100
thermal expansion coefficient	10−4/℃	1.3
Water absorption rate	%	<0.01
dielectric constant	−	2.4
Breakdown voltage	kV/mm	44

■Conveyor Parts Fixed size
・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

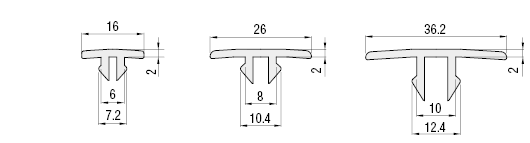

Conveyor Parts Model		color	Length m	Compatible frame (series)
Conveyor Parts Type	No.
HSCY	5	W(white) B(black)	2	5 Series
	6			6 Series
	8			8 Series*

*Cannot be used with the 8-45 series.
[!]Please check with WOS if the displayed quantity is exceeded.
■Conveyor Parts Specified size
・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

Conveyor Parts Model		color	Length in 1mm increments	Compatible frame (series)
Conveyor Parts Type	No.
HSCYF	5	W(white) B(black)	50to2000	5 Series
	6			6 Series
	8			8 Series*

*Cannot be used with the 8-45 series.
