Sheet Metal Plates For 8 Series (Slot Width 10mm) Aluminum Frames
Brand :
MISUMI
Caution
Product Description
It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).

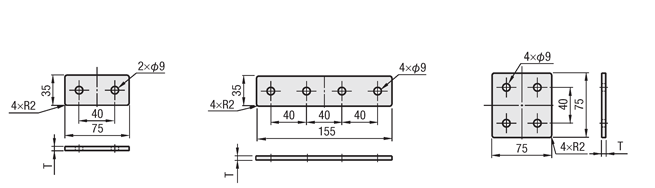

Dimensional Drawing of Metal Brackets
HPTSS8
SHPTSS8
SHPTSS8
HPTSSL8
SHPTSSL8
SHPTSSL8
HPTSD8
SHPTSD8
SHPTSD8
| Type Metal Brackets | [M]Material | [S] Surface Treatment |
| HPTSS | SPHC | Trivalent chromate |
| HPTSSL | ||
| HPTSD | ||
| SHPTSS | SUS304 | − |
| SHPTSSL | ||
| SHPTSD |
Specification Table of Metal Brackets
| Model Metal Brackets |
| HPTSS8 |
・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.
・To check the latest price, click the "Check Price" button after confirming the model number.
| Model Metal Brackets | Mass (g) | T | Applicable bolts and nuts | |||
| bolt | Quantity | nut | Quantity | |||
| HPTSS8 | 61 | 3.2 | M8-15 | 2 | M8 | 2 |
| SHPTSS8 | 3 | |||||
| HPTSSL8 | 122 | 3.2 | 4 | 4 | ||
| SHPTSSL8 | 3 | |||||
| HPTSD8 | 131 | 3.2 | ||||
| SHPTSD8 | 3 | |||||
Additional Work of Metal Brackets
| Model Metal Brackets | − | (SET) |
| HPTSS8 | − | SET |
| Alterations | Code | Spec. | Model | ||||||||||||||||||||||||||
| Applicable bolt and nut set | SET SEP (Post-assembly spring nut) SEU (Pre-assembly spring nut) | A set of applicable bolts and nuts for attaching each plate to the frame is included.
| HPTSS8 | ||||||||||||||||||||||||||
| SHPTSS8 | |||||||||||||||||||||||||||||
| HPTSSL8 | |||||||||||||||||||||||||||||
| SHPTSSL8 | |||||||||||||||||||||||||||||
| HPTSD8 | |||||||||||||||||||||||||||||
| SHPTSD8 | |||||||||||||||||||||||||||||
| HPTLN8 | |||||||||||||||||||||||||||||
| SHPTLN8 | |||||||||||||||||||||||||||||
| HPTLS8 | |||||||||||||||||||||||||||||
| SHPTLS8 | |||||||||||||||||||||||||||||
| HPTLD8 | |||||||||||||||||||||||||||||
| HPTCUL8 | |||||||||||||||||||||||||||||
| SHPTCUL8 | |||||||||||||||||||||||||||||
| HPTUL8 | |||||||||||||||||||||||||||||
| HPTWUL8 | |||||||||||||||||||||||||||||
| [ ! ]Material: When specifying -SET for SPHC, the bolt CBM will not be RoHS compliant. | |||||||||||||||||||||||||||||
Additional Work Details of Metal Brackets
■ Metal Brackets, Additional processing of steel (HPTSS8, HPTSL8, HPTSD8)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | CBM8-15 | iron | First in, first out | HNTT8-8 | iron | none |
| SEU | CBM8-15 | iron | First in, first out | HNTU8-8 | iron | Yes |
| SEP | CBM8-15 | iron | Later insertion | HNTP8-8 | iron | Yes |
■ Metal Brackets, Additional processing of stainless steel (SHPTSS8, SHPTSSL8, SHPTSD8)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | SCB8-15 | stainless | First in, first out | HNTTSN8-8 | stainless | none |
| SEU | SCB8-15 | stainless | First in, first out | SHNTU8-8 | stainless | Yes |
| SEP | SCB8-15 | stainless | Later insertion | SHNTP8-8 | stainless | Yes |
Compatible Frames of Metal Brackets

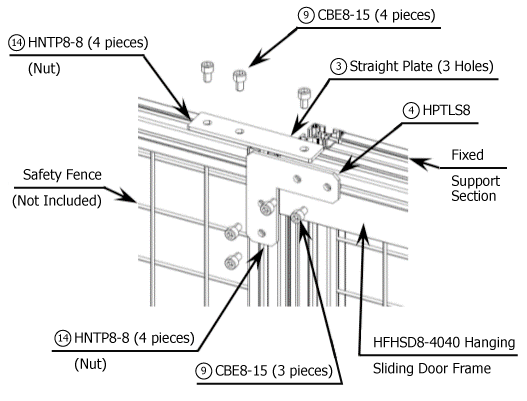

How to Use of Metal Brackets
- Metal Brackets, Sheet metal plates are used where necessary when customer designs require reinforcement of fastening parts (bracket fastening, bolt fastening, joint fastening).
- The more bolts there are, the stronger the fastening force.
- It can also be used to connect safety fences together.
