Select part number to Order Now/ Add to Cart

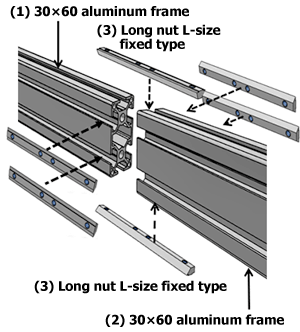

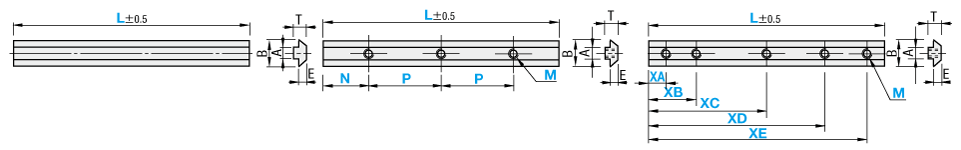

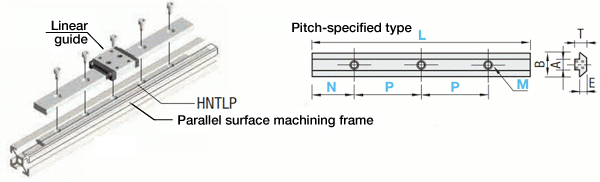

These are long nuts with specifiable length (L dimension). The length can be specified from 50 mm
Part Number |
---|
HNTLP6-212-M3-N16-P60-4 |
Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Material | Material | Surface Treatment | Sale Type | Hole Position [XA] (mm) | L (mm) | Number of Taps [S] (pc(s).) | Pitch [N] (mm) | Pitch [P] (mm) | Tap Dia. [M] (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | NUTS FOR ALUMINIUM FRAMES | 1 Piece(s) | 5 Day(s) | 10 | Steel | S10C Equivalent | Trivalent Chromate | Pre-Assembly Insertion, Pitch Configurable | - | 212 | 4 | 16 | 60 | 3 |
Loading...
Nut Type | Long Nuts | Series | MISUMI 6 Series | Lock | Not Provided |
---|---|---|---|---|---|
Type | HFS |
