Sheet Metal Bracket For 6 Series (Slot Width 8mm) Aluminum Frames - Bent-Shaped

Brand :

MISUMI

Caution

Product Description

It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).

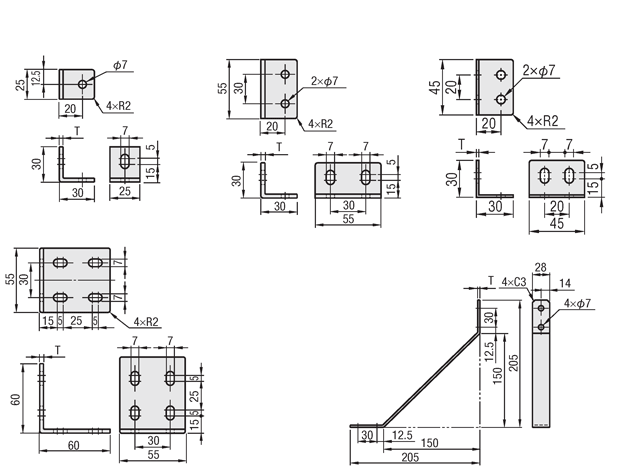

Dimensional Drawing of Metal Brackets

HPTBS6
SHPTBS6

HPTBD6
SHPTBD6

HPTBD6-50

HPTBDW6
SHPTBDW6

HPTGS6

Type Metal Brackets	[M]Material	[S] Surface Treatment
HPTBS	SPHC	Trivalent chromate
HPTBD6
HPTBD6-50
HPTBDW
HPTGS
SHPTBS	SUS304	−
SHPTBD
SHPTBDW

Specification Table of Metal Brackets

Model Metal Brackets

HPTBS6

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

Model Metal Brackets	mass g	T	Applicable bolts and nuts
			bolt	Quantity	nut	Quantity
HPTBS6	31	3.2	M6-10	2	M6	2
SHPTBS6		3
HPTBD6	69	3.2		4		4
SHPTBD6		3
HPTBD6-50	64	3.2
HPTBDW6	197	4.5		8		8
SHPTBDW6		4
HPTGS6	213	3.2		4		4

Additional Work of Metal Brackets

Model Metal Brackets	−	(SET)
HPTTS6	−	SET

Alterations Metal Brackets

Code

Spec.

Model

Applicable bolt
and nut set

SET
SEP
(Post-assembly spring nut)

SEU
(Pre-assembly spring nut)

A set of applicable bolts and nuts for attaching each plate to the frame
is included.

Material	Code	Model
Material	Code	bolt	nut
SPHC	SET	CBM6-10	HNTT6-6
	SEP	CBM6-10	HNTP6−6
	SEU	CBM6-10	HNTU6−6
SUS304	SET	SCB6-10	HNTTSN6−6
	SEP	SCB6-10	SHNTP6−6
	SEU	SCB6-10	SHNTU6-6

HPTTS6

SHPTTS6

HPTTD6

HPTPS6

HPTBS6

SHPTBS6

HPTBD6

SHPTBD6

HPTBD6-50

HPTBDW6

SHPTBDW6

HPTGS6

[ ! ]Material: When specifying -SET for SPHC, the bolt CBM will not be RoHS compliant.

Additional Work Details of Metal Brackets

■ Metal Brackets, Additional processing of iron products (HPTBS6, HPTBD6, HPTBD6-50, HPTBDW6, HPTBD6)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM6-10	iron	First in, first out	HNTT6-6	iron	none
SEP	CBM6-10	iron	Later insertion	HNTP6-6	iron	Yes
SEU	CBM6-10	iron	First in, first out	HNTU6-6	iron	Yes

■ Metal Brackets, Additional processing of stainless steel products (SHPTBS6, SHPTBD6, SHPTBDW6)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	SCB6-10	stainless	First in, first out	HNTTSN6-6	stainless	none
SEP	SCB6-10	stainless	Later insertion	SHNTP6-6	stainless	Yes
SEU	SCB6-10	stainless	First in, first out	SHNTU6-6	stainless	Yes

Compatible Frames of Metal Brackets

Sheet Metal Brackets		Compatible Frames
iron	stainless	Compatible Frames
HPTBS6	SHPTBS6	6-30 square / 30 square safety fence frame
HPTGS6	-	6-30 square / 30 square safety fence frame
HPTBD6	SHPTBD6	6-60mm square(using two 30mm square frames)
HPTBDW6	SHPTBDW6	6-60mm square(using two 30mm square frames)
HPTBD6-50	-	6-50 square

How to Use of Metal Brackets

Metal Brackets, Sheet metal plates are used where necessary when customer designs require reinforcement of fastening parts (bracket fastening, bolt fastening, joint fastening).
The more bolts there are, the stronger the fastening force.
It can also be used to connect safety fences together.
