Sheet Metal Bracket For 6 Series (Slot Width 8mm) Aluminum Frames - L-Shaped

Brand :

MISUMI

Caution

Product Description

It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).

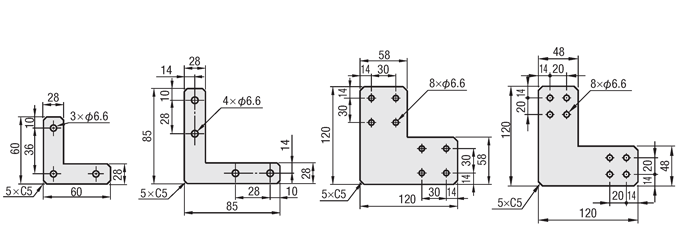

Dimensional Drawing of Metal Brackets

HPTLN6
SHPTLN6

HPTLS6
SHPTLS6

HPTLD6

HPTLD6-50

(T=plate thickness)(T=plate thickness)(T=plate thickness)(T=plate thickness) Metal Brackets

Type Metal Brackets	[M]Material	[S] Surface Treatment
HPTLN	SPHC	Trivalent chromate
HPTLS
HPTLD6
HPTLD6-50
SHPTLN	SUS304	−
SHPTLS

Specification Table of Metal Brackets

Model Metal Brackets

HPTLN6

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

Model Metal Brackets	mass g	T	Applicable bolts and nuts
			bolt	Quantity	nut	Quantity
HPTLN6	56	3.2	M6-10	3	M6	3
SHPTLN6		3
HPTLS6	92	3.2		4		4
SHPTLS6		3
HPTLD6	250	3.2		8		8
HPTLD6-50	230	3.2

Additional Work of Metal Brackets

Model Metal Brackets	−	(SET)
HPTLN6	−	SET

Alterations Metal Brackets

Code

Spec.

Model

Applicable bolt
and nut set

SET
SEP
(Post-assembly spring nut)

SEU
(Pre-assembly spring nut)

A set of applicable bolts and nuts for attaching each plate to the frame
is included.

Material	Code	Model
Material	Code	bolt	nut
SPHC	SET	CBM6-10	HNTT6-6
	SEP	CBM6-10	HNTP6−6
	SEU	CBM6-10	HNTU6−6
SUS304	SET	SCB6-10	HNTTSN6−6
	SEP	SCB6-10	SHNTP6−6
	SEU	SCB6-10	SHNTU6-6

HPTSS6

SHPTSS6

HPTSSL6

SHPTSSL6

HPTSD6

SHPTSD6

HPTLN6

SHPTLN6

HPTLS6

SHPTLS6

HPTLD6

HPTLD6-50

HPTCUL6

SHPTCUL6

HPTUL6

SHPTUL6

HPTWUL6

SHPTWUL6

[ ! ]Material Metal Brackets: When specifying -SET for SPHC, the bolt CBM will not be RoHS compliant.

Additional Work Details of Metal Brackets

■ Metal Brackets, Additional processing of iron products (HPTLN6, HPTLS6, HPTLD6, HPTLD6-50)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM6-10	iron	First in, first out	HNTT6-6	iron	none
SEP	CBM6-10	iron	Later insertion	HNTP6-6	iron	Yes
SEU	CBM6-10	iron	First in, first out	HNTU6-6	iron	Yes

■ Metal Brackets, Additional processing of stainless steel products (SHPTLN6, SHPTLS6)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	SCB6-10	stainless	First in, first out	HNTTSN6-6	stainless	none
SEP	SCB6-10	stainless	Later insertion	SHNTP6-6	stainless	Yes
SEU	SCB6-10	stainless	First in, first out	SHNTU6-6	stainless	Yes

Compatible Frames of Metal Brackets

Sheet Metal Brackets		Compatible Frames
iron	stainless	Compatible Frames
HPTLN6	SHPTLN6	6-30 square / 30 square safety fence frame
HPTLS6	SHPTLS6	6-30 square / 30 square safety fence frame
HPTLD6	-	6-60 square
HPTLD6-50	-	6-50 square

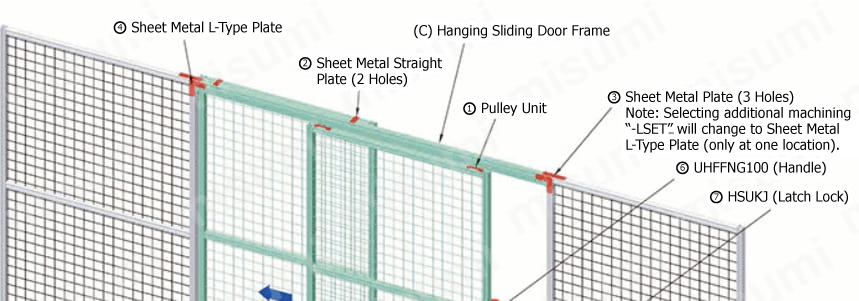

How to use of Metal Brackets

Metal Brackets, Sheet metal plates are used where necessary when customer designs require reinforcement of fastening parts (bracket fastening, bolt fastening, joint fastening).
The more bolts there are, the stronger the fastening force.
It can also be used to connect safety fences together.
