Series 6 Aluminum Plate Bracket - Bolt-On Design

Brand :

MISUMI

Caution

Product Description

These are brackets for tapping the frame and fastening it with bolts.

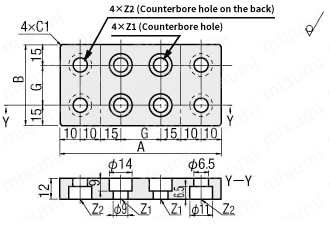

Dimensional Drawing of Block Brackets and Plate Brackets

HBLPL6

Plate bracket for 6 series (groove width 8 mm): Related images

*Bolts are not included.

Block Brackets and Plate Brackets Material SS400
Surface treatment: Electroless nickel plating

Specification Table of Block Brackets and Plate Brackets

Block Brackets and Plate Brackets Model	−	Frame
HBLPL6	−	5050

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

Block Brackets and Plate Brackets Model	Frame	A	B	Z1	Z2	G	Mass (g)
				Compatible Bolts
HBLPL6	5050	90	50	M8	M6	20	350
	6060	100	60			30	470

Additional Work of Block Brackets and Plate Brackets

Alteration	Code	Spec.
Additional through-hole machining	DC	Additional through holes are machined. DC = Hole diameter designation in 1mm increments [!]10≦DC≦20 Designation method DC12

Suitable Frame of Block Brackets and Plate Brackets

Connection Method of Block Brackets and Plate Brackets

(1) Add a tapped holeto the end of the frame and fasten it to the Z1 hole. (2) Insert a nut into the base frame and fasten it to the Z2 hole with an M6 bolt.
