Frame End Caps For 8-45 Series (Slot Width 10mm) Aluminum Frames - End Plates

Brand :

MISUMI

Caution

Product Description

This is Frame cap for HFSR5-404020. No additional alteration required.

Dimensional Drawing of Frame Caps

[M] Frame Caps Material: SUS304

Specification Table of Frame Caps

Frame Caps Model
HFCR5-404020

・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.

Frame Caps Model	Suitable bolt	Supported Frames
HFCR5-404020	SHFBS5-6	HFSR5-404020

[ ! ]HFCR5-404020 requires additional work on the frame cross section and the use of suitable bolts for installation. (Bolts are not included.)

Additional Processing of Frame Caps

■Additional work to attach end plates to HFSR5-404020

Alterations		End plate mounting hole processing
Code		LTS	RTS	TSW
Spec.		The frame should be placed as shown in the figure below . LTS: Processing on the left end face RTS: Processing on the right end face TSW: Processing on both ends Example LTS
Applicable Frame Caps	Suitable bolt
HFSR5-404020	SHFBS5-6	660	660	1,320

Technical Information of Frame Caps

How to make it flush
: Shorten the length of the aluminum frame by the thickness of the Frame Caps.

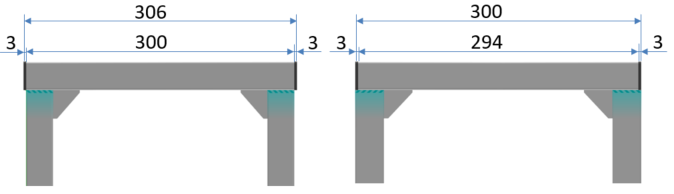

<Example: Frame Caps connection: When connecting with one side 300 mm long>
A: Specify the model number that protrudes to account for the thickness of the Frame Caps,
HFS6-3030-300, with a length of 300 mm.

B: Specify the model number for the Frame Caps that does not protrude and is flush,
HFS6-3030-294, shorter by the thickness of the Frame Caps.

A Frame Caps pops out

B Frame Caps is flush and
does not protrude

5 Series (groove width 6mm) Aluminum frame end plate Related image 1_Technical information

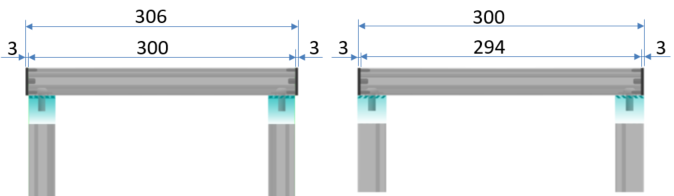

<Example: Screw joint connection: When connecting with one side 300 mm long>
C: For the thickness of the Frame Caps,
specify the protruding model HFS6-3030-300-RCV-LCV and 300 mm long wrench holes on the left and right.

D: For the Frame Caps, specify the model HFS6-3030-294-RCV-LCV-FR-FL, which does not protrude and is flush with
the Frame Caps, shortening it by the thickness of the Frame Caps, and specify the wrench holes and wrench hole shifts on the left and right.

C Frame Caps pops out

D Frame Caps are flush and
do not protrude
