Pre-Assembly Insertion Stoppers - Standard - For 5 Series (Slot Width 6mm)

Brand :

MISUMI

Caution

Product Description

[Features]
• Polyamide stopper for 5 Series slot width 6mm frames.
• Temporarily fixes pre-insertion nuts inside the frame to help prevent nut drop in vertical frames.
[Use]
• Use with compatible pre-insertion nuts when assembling 5 Series aluminum frames.

Dimensional Drawing of Nuts

HNST5

For 5 series (groove width 6 mm) Aluminum frame Pre-insertion stopper: Related images

[M] Nuts Material: Polyamide

Specification Table of Nuts

Nuts Model

HNST5

・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.

Nuts Model	Corresponding pre-insertion Nuts	color
HNST5	HNTT5 HNTTV5 HNTTZ5 HNTTSN5 HNTTSS5	black

How to Use of Nuts

- The pre-insertion stopper can be temporarily fixed inside the frame, so the Nuts will not fall off.

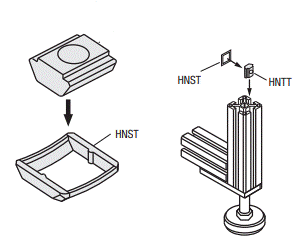

5 series (groove width 6 mm) for 20, 25, and 40 square aluminum frames Pre-insertion stopper Related image 1_Example of use

■ Please checkherefor compatible models . HNTT5 HNTTV5 HNTTZ5 HNTTSN5 HNTTSS5

5 Series Related Parts of Nuts

Product name	Aluminum frame	bracket	Blind Joint	Frame cap	Groove cover
photograph
Product page	Here	Here	Here	Here	Here

Example
