Sheet Metal Bracket For 5 Series (Slot Width 6mm) Aluminum Frames - Triangle-Shaped
Brand :
MISUMI
Caution
Product Description
It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).

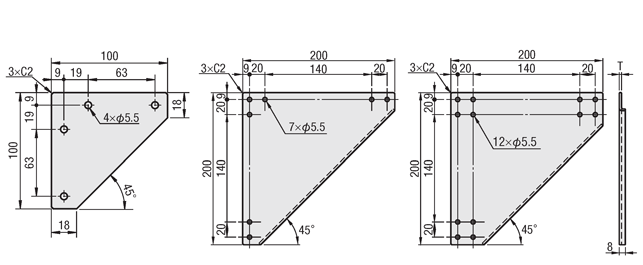

Dimensional Drawing of Metal Brackets
HPTCUL5
SHPTCUL5
SHPTCUL5
HPTUL5
SHPTUL5
SHPTUL5
HPTWUL5
SHPTWUL5
SHPTWUL5
| Type | [M]Material | [S] Surface Treatment |
| HPTCUL | SPHC | Trivalent chromate |
| HPTUL | ||
| HPTWUL | ||
| SHPTCUL | SUS304 | − |
| SHPTUL | ||
| SHPTWUL |
Specification Table of Metal Brackets
| Model Metal Brackets |
| HPTCUL5 SHPTCUL5 |
・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.
・To check the latest price, click the "Check Price" button after confirming the model number.
| Model Metal Brackets | Mass (g) | T | Applicable bolts and nuts | |||
| bolt | Quantity | nut | Quantity | |||
| HPTCUL5 | 95 | 2.3 | M5-8 | 4 | M5 | 4 |
| SHPTCUL5 | 95 | 2 | 4 | 4 | ||
| HPTUL5 | 380 | 2.3 | 7 | 7 | ||
| SHPTUL5 | 2 | |||||
| HPTWUL5 | 378 | 2.3 | 12 | 12 | ||
| SHPTWUL5 | 2 | |||||
Additional Work of Metal Brackets
| Model | − | (SET) |
| HPTSS5 | − | SET |
| Alterations Metal Brackets | Code | Spec. | Model | ||||||||||||||||||||||||||
| Applicable bolt and nut set | SET SEP (Post-assembly spring nut) SEU (Pre-assembly spring nut) | A set of applicable bolts and nuts for attaching each plate to the frame is included.
| HPTSS5 | ||||||||||||||||||||||||||
| SHPTSS5 | |||||||||||||||||||||||||||||
| HPTSSL5 | |||||||||||||||||||||||||||||
| SHPTSSL5 | |||||||||||||||||||||||||||||
| HPTSD5 | |||||||||||||||||||||||||||||
| SHPTSD5 | |||||||||||||||||||||||||||||
| HPTLN5 | |||||||||||||||||||||||||||||
| SHPTLN5 | |||||||||||||||||||||||||||||
| HPTLS5 | |||||||||||||||||||||||||||||
| SHPTLS5 | |||||||||||||||||||||||||||||
| HPTLD5 | |||||||||||||||||||||||||||||
| HPTCUL5 | |||||||||||||||||||||||||||||
| SHPTCUL5 | |||||||||||||||||||||||||||||
| HPTUL5 | |||||||||||||||||||||||||||||
| SHPTUL5 | |||||||||||||||||||||||||||||
| HPTWUL5 | |||||||||||||||||||||||||||||
| SHPTWUL5 | |||||||||||||||||||||||||||||
| [ ! ]Material Metal Brackets: When specifying -SET for SPHC, the bolt CBM will not be RoHS compliant. | |||||||||||||||||||||||||||||
Additional Work Details of Metal Brackets
■ Metal Brackets, Additional processing of iron (HPTCUL5, HPTUL5, HPTWUL5)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | CBM5-8 | iron | First in, first out | HNTT5-5 | iron | none |
| SEU | CBM5-8 | iron | First in, first out | HNTU5-5 | iron | Yes |
| SEP | CBM5-8 | iron | Later insertion | HNTP5-5 | iron | Yes |
■ Metal Brackets, Additional processing of stainless steel (SHPTCUL5, SHPTUL5, SHPTWUL5)
| Additional machining model | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | SCB5-8 | stainless | First in, first out | HNTTSN5-5 | stainless | none |
| SEU | SCB5-8 | stainless | First in, first out | SHNTU5-5 | stainless | Yes |
| SEP | SCB5-8 | stainless | Later insertion | SHNTP5-5 | stainless | Yes |
Compatible Frames of Metal Brackets
・5 Series frame of Metal Brackets
How to Use of Metal Brackets
- Metal Brackets, Sheet metal plates are used where necessary when customer designs require reinforcement of fastening parts (bracket fastening, bolt fastening, joint fastening).
- The more bolts there are, the stronger the fastening force.
