5 Series Aluminum Frame Tabbed Bracket - 6mm Slot, 2 Slots

Brand :

MISUMI

Caution

Product Description

Bracket with protrusion for 2-row groove type frame (HFS5-2040, etc.).

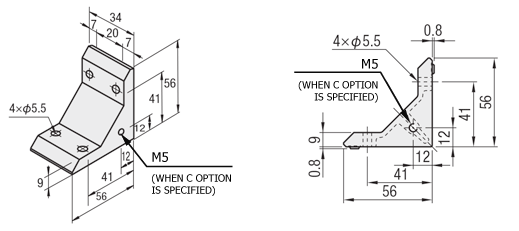

Dimensional Drawing of 90 degree Brackets

HBLFUD5

5 Series (6mm Groove Width) - For 2-Row Groove - Protrusion 90 degree Brackets: Related Images

[ ! ]For the 90 degree Brackets squareness, please refer to the squareness tolerance table
. [ M ]Material: ADC12 [ S ]Surface treatment: None

Specification Table of 90 degree Brackets

Model

HBLFUD5

・The price list below is currentas of April 2011.
・To check the latest price, click the "Check Price" button after confirming the model number.

[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select it from the "Accessories" filter.
For detailed specifications, please check the individual product links under "Applicable bolt and nut set" (can be purchased individually).

Model	Mass (g)	Compatible bolts and T-nuts				Allowable load (N)
Model	Mass (g)	bolt	Quantity	T-nut	Quantity	Allowable load (N)
HBLFUD5	76	CBM5-14	4	HNTT5-5	4	1470

Additional Work of 90 degree Brackets

Model	−	(C・SET・SST・SEU・SSU・SEP・SSP・SEC)
HBLFUD5	−	SET
HBLFUD5	−	C-SET

Alterations	Code	Spec.	Applicable 90 degree Brackets
Additional cover mounting holes	C	The 90 degree Brackets can be fitted with M5 tapped holes on both sides for attaching the cover. Model example: HBLFUD5-C (mounting screws:HCBM).	HBLFSD5
			HBLFSDK5
			HBLFUD5
			HBLFSDW5

Alterations

Code

Spec.

Applicable 90 degree Brackets

Applicable bolt
and nut set

SET
SST
(Stainless steel)
SEU
(Pre-assembly spring nuts)
SSU
(Pre-assembly spring nuts
stainless steel)
SEP
(Post-assembly spring nuts)
SSP
(Post-assembly spring nuts
stainless steel)
SEC
(Bolts and nuts with assembled washers)

The set includes the applicable bolts and nuts for attaching the 90 degree Brackets to the frame. (Added to the 90 degree Brackets price)

(Example) When specifying HBLFUD5

	bolt		nut
Code	Model	Quantity	Model	Quantity
SET	CBM5-14	4	HNTT5-5	4
SST	SCB5-14		HNTTBS5-5
SEU	CBM5-14		HNTU5-5
SSU	SCB5-14		SHNTU5-5
SEP	CBM5-14		HNTP5-5
SSP	SCB5-14		SHNTP5-5
SEC	HCBST5-16		HNTT5-5

HBLFSD5

HBLFSDK5

HBLFUD5

HBLFSDW5

[ ! ]When -SET, -SEU, or -SEP is specified, the included bolts are not RoHS compliant.

■Applicable bolt and nut set details (can be purchased separately)

Additional machining model	bolt		nut
Additional machining model	Model	Material	type	Model	Material	Stopper
SET	CBM5-14	iron	First in, first out	HNTT5-5	iron	none
SST	SCB5-14	stainless	First in, first out	HNTTBS5-5	stainless	none
SEU	CBM5-14	iron	First in, first out	HNTU5-5	iron	Yes
SSU	SCB5-14	stainless	First in, first out	SHNTU5-5	stainless	Yes
SEP	CBM5-14	iron	Later insertion	HNTP5-5	iron	Yes
SSP	SCB5-14	stainless	Later insertion	SHNTP5-5	stainless	Yes
SEC	HCBST5-16	Iron (with washer)	First in, first out	HNTT5-5	iron	none

How to Use of 90 degree Brackets

- This type has a protrusion that fits into the frame groove.
The protrusion acts as a rotation stopper during fastening work, making it easy to work with.

5 Series (groove width 6 mm) - For 2-row grooves - Protrusion 90 degree Brackets Related image 1_Example of use

Technical Information of 90 degree Brackets

■ For the squareness of the square 90 degree Brackets, please refer to the squareness tolerance table.
■How to think about the 90 degree Brackets allowable load

5 Series (6mm Groove Width) - For 2-Row Groove - Protrusion 90 degree Brackets Related Image 1_Technical Information

As shown in the diagram on the left, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, showing the allowable load per unit.
The allowable load here refers to the load that the 90 degree Brackets can maintain in position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.

Similar Products of 90 degree Brackets

■5 Series (groove width 6mm) -For 2-row grooves- 90 degree Brackets

Product name	90 degree Brackets with protrusion (this product)	Reversible 90 degree Brackets with protrusion	Reversible 90 degree Brackets with protrusion	Thick extruded 90 degree Brackets	Extra-thick extruded 90 degree Brackets	Thick extruded 90 degree Brackets	Thin 90 degree Brackets
Protrusion position	With protrusions on both sides	With protrusions on both sides / With protrusions on one side	With protrusions on both sides	-	-	-	-
Allowable load (N)	1470	1470	2156	1470	1470	2156	686/1176/1617
Material	ADC12	ADC12	ADC12	A6063S-T5 A6N01SS-T5	A6063S-T5 A6N01SS-T5	A6N01SS-T5	A6N01SS-T5
Features	The protrusions make positioning easy, and the shape makes it difficult for dust to accumulate.	L-shaped and cross connections are possible. Positioning is easy thanks to the protrusions.	It has ribs and four mounting holes on one side, allowing for a stronger connection.	Thick extruded 90 degree Brackets. Compatible with clear coating.	This product is a thick extruded 90 degree Brackets with increased strength. Its shape makes it difficult for dust to accumulate.	This type has four mounting holes on one side, allowing for a stronger connection.	This is effective for saving space during installation. Hole positions can be changed with additional machining.
