[Features]·Push-pull toggle clamp that allows the handle to be attached at any position and angle.
Type | Side Push | Tightening Force(N) | 3138 | Body Material | SS400 |
---|---|---|---|---|---|
Clamp Screw | Stationary | Clamp Screw Size | M10 | Clamp Screw Material | Steel |
Handle Length | Normal | Tightening Force (Range Selectable)(N) | 3100~ | Mount Type | Free Mounting Direction |
Tip Accessories | Steel Bolt |

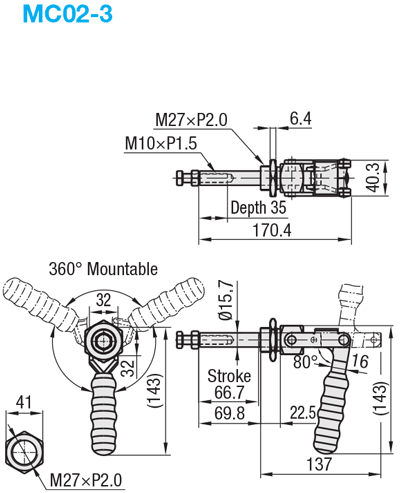

Please check the type/dimensions/specifications of the part MC02-3 in the Toggle Clamp, Side Push/Pull, Free Mounting Direction, Clamp Bolt Size M10, Clamping Force 3,138 N series.
