High Torque Timing Pulleys - 3GT Type
Brand :
MISUMI
Caution
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description

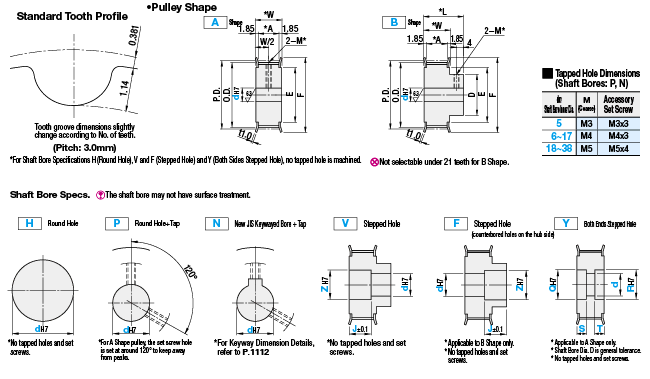

Since it has an arc tooth profile, it has little backlash and it is suitable for positioning applications.
[Material]
· Pulley: Aluminum alloy, S45C equivalent
· Flange: Aluminum alloy, SPCC
[Surface treatment]
· Clear anodize, black iron oxide coating
[Related Products]
· Timing belt High Torque Timing Belt,
· Idler Idler with Teeth Center Bearing, Idler with Teeth Both Sides Bearing, Idler - Backside Tensioning Center Bearing, Idler - Backside Tensioning Both Sides Bearing
| Catalog No. | [ M ] Material | [ S ] Surface Treatment | |||
| Belt Width 6mm | Belt Width 9mm | Belt Width 15mm | Pulley | Flange | |
| A:7.3 W:11.0 L:19.0 | A:10.3 W:14.0 L:22.0 | A:16.3 W:20.0 L:28.0 | |||
| GPA__GT3060 | GPA__GT3090 | GPA__GT3150 | 2017 Aluminum Alloy (Duralumin) | A5052 | Clear Anodize |
| GPT__GT3060 | GPT__GT3090 | GPT__GT3150 | S45C | SPCC | - |
| GPM__GT3060 | GPM__GT3090 | GPM__GT3150 | Black Oxide | ||
[ ! ] Due to vibrations during transportation, the set screw may become detached from the main body.
