Cable Carriers -Slit

Brand :

MISUMI

Caution

Product Description

[ M ] Material: Special Plastic Operating Temp.-30°C ~ 100°C Flammability Standard UL94-V2

Specifications

Part Number	-	Bending Radius	-	No. of Links
SE14F-3	-	048	-	20

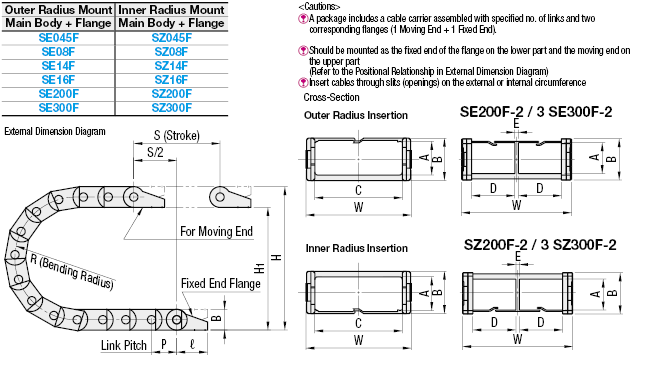

Part Number		Bending Radius	No. of Links	H	H₁	HF	K	P	B	ℓ
Type	No.	Selectable	No. of Links	(Mounting Height)	H₁	(Required Physical Height)	(Arc+Allowance)	P	B	ℓ
SE045F SZ045F	16	018	1~27	50	37.5	60	95	13	12.5	22.3
		028	1~29	70	57.5	80	120
		038	1~31	90	77.5	100	145
SE08F SZ08F	16 20 30 40 50	028	1~37	76	56.7	91	130	20	19.3	28
		038	1~38	96	76.7	111	160
		048	1~40	116	96.7	131	190
SE14F SZ14F	1 2 3 4	028	1~30	82	57	92	150	30.5	25	38
		038	1~30	102	77	112	185
		048	1~30	122	97	132	215
		075	1~30	177	152	187	300
		100	1~33	227	202	237	375
SE16F SZ16F	2 3 4	060	1~30	159	120	174	270	30.5	39	38
		075	1~30	189	150	204	305
		100	1~33	239	200	254	395
SE200F SZ200F	1 2 3	055	1~28	145	110	185	276	46	35	72
		075	1~30	185	150	225	346
		100	1~31	235	200	275	414
		150	1~35	335	300	375	578
		200	1~38	435	400	475	742
SE300F SZ300F	1 2	075	1~29	215	148	255	400	67	64	94
		100	1~30	265	198	305	500
		125	1~33	315	248	355	650
		150	1~33	365	298	405	725
		200	1~36	465	398	505	875
		250	1~38	565	498	605	1050
		300	1~41	665	598	705	1225
