Resin Rods - Exterior Surface Unfinished
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
There is a lineup of resin material cylindrical rods ranging from ø10 to ø200.
Specification Table
[!] Exterior surfaces are unfinished.
L Dimension Tolerance
| D | L Dimension Tolerance |
| 10 to 55 | 0 to +3.0 |
| 60 to 200 | 0 to +10.0 |
D Dimension Tolerance
| D | MC Nylon | Nylon 6 (Cast) | Other Materials |
| 10 to 16 | 0 to +1.5 | 0 to +1.5 | 0 to +1.5 |
| 20 to 25 | 0 to +2.5 | ||
| 30 to 35 | 0 to +3.5 | ||
| 40 to 50 | 0 to +3.0 | 0 to +3.5 | 0 to +3.0 |
| 55・60 to 70 | 0.1 to +4.0 | 0 to +4.0 | |
| 75 to 100 | 0 to +4.0 | ||
| 110 to 150 | 0 to +5.0 | 0 to +6.0 | +0.7 to +0.5 |
| 160 to 200 | +1.1 to +5.5 |
Product Specifications
| Part Number | [M] Material | Grade | Color |
| RDJJS | Polyacetal | Standard | White |
| RDJKS | Black | ||
| RDJMS | MC Nylon | Standard | Blue |
| RDJDS | Nylon 6 (Cast) | Standard | Blue |
| RDJFS | Fluororesin(PTFE) | Standard | White |
Warpage Range of D
| D | MC Nylon | Nylon 6 (Cast) | Other Materials |
| 10 | — | 4.0 or Less | 5.0 or Less |
| 15 | 3.0 or Less | ||
| 20 to 25 | 4.0 or Less | ||
| 30 to 200 |
■Warpage Inspection Method
·O.D.: Maximum and minimum diameters will be measured with a caliper.

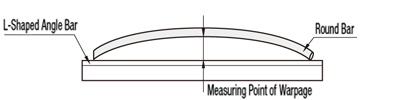

·Warpage: Rod is laid along the L-shaped Angle as shown in the diagram and turned 360° along the O.D. Maximum clearance is measured with a ruler.
·O.D.: Maximum and minimum diameters will be measured with a caliper.
·Warpage: Rod is laid along the L-shaped Angle as shown in the diagram and turned 360° along the O.D. Maximum clearance is measured with a ruler.
Product Comparison Information
Physical Property Comparison Table
| Item | Polyacetal | MC Nylon | Nylon 6 (Cast) | |
| D ≤ 25 | D ≥ 30 | |||
| Typical Model | ||||
| RDJJS RDJKS | RDJMS | RDJDS | ||
| Rockwell Hardness R Scale | 119 | 120 | 119 | 118 |
| Water Absorption Ratio_In Water, 24 hs (Unit: %): %) | 0.22 | 0.8 | 0.3 | 0.72 |
| Sliding Properties | △ | ○ | ○ | ○ |
| Compression Strength | ◎ | ○ | ○ | ○ |
| Flexural Strength | × | ○ | ○ | ○ |
| Abrasion Resistance | △ | ○ | ○ | △ |
| Detailed Physical Property Table Reference Typical Model | PAA | MAC | CANY-T | CANY |
[ ! ]The information listed is for reference only, based on MC Nylon.
[ ! ]D ≤ 25 and D ≥ 30 have different physical property. Check the physical property information of CANY-T when D ≥ 25, and CANY when D ≥ 30.
