Corner Brackets, Corner Blind Brackets - For 8 Series (Slot Width 10mm) Aluminum Frames 40 Square
Brand :
MISUMI
Caution
Product Description
Product that can be connected in 2 or 3 directions with a single bracket.

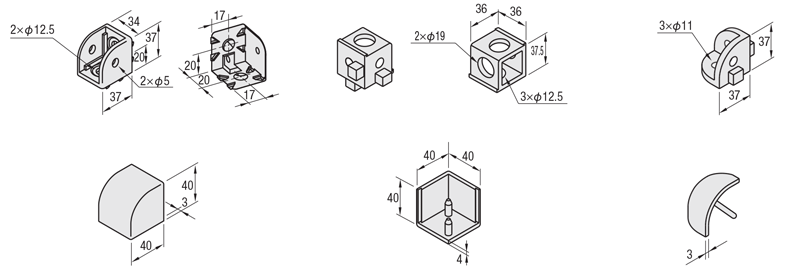

Dimensional Drawing of Corner Brackets
Corner Brackets Two-way typeHBLCS8—B
Corner Brackets 3-way type
HBLCR8—B(Cap: Black)
HBLCR8—S(Cap: Gray)
HBLCD8—S(Cap: Gray)
①
① (Front side)
(Back side)
①
② Corner Brackets cap
② Corner Brackets cap
② Corner R bracket cap
(2 hexagon socket bolts included)
(3 button bolts included)
[ ! ]HBLCR6-□ is made of zinc die-cast, so please use it at temperatures below 100℃.
| Type | [M] Material | [S] Surface Treatment |
| HBLCS8 | ①ADC12 | − |
| ②Polyamide | ||
| HBLCR8 | ①ZDC2 | Trivalent Chromate |
| ②Polyamide | − | |
| HBLCD8 | ①SCS13 | |
| ②Polyamide |
Specification Table of Corner Brackets
| Model |
| HBLCS8-B |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Model | Mass (g) | Attached bolts | Allowable load (N) | |
| bolt | Quantity | |||
| HBLCS8-B | 64 | CBS12-30 | 2 | 800 |
| HBLCR8-B | 84 | CBS12-30 | 3 | 1623 |
| HBLCR8-S | 84 | 1623 | ||
| HBLCD8-S | 64 | Button bolt M10 x 30 | 3 | 3026 |
Supported Frames of Corner Brackets
- Can be used with 8 series 40x40mm .
- Corner Brackets HBLCD can be used with8 series 40x40mm R shape frames .
How to Use of Corner Brackets

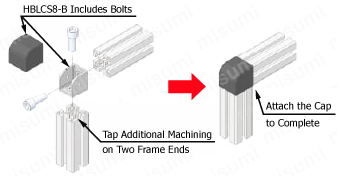

- Installation requires additional end tapping (center hole) on the aluminum frame.
Reference of Corner Brackets
- The cap has a prevention measure in place to prevent it from coming off.
- The set includes the Corner Brackets body, bolts, and caps.
- The aluminum frame is not designed to fit inside the bracket,
so the length of one side is the length of the aluminum frame + the size of the Corner Brackets.
Product Comparison Information of Corner Brackets
■ Corner Brackets
| Product name | Corner Brackets bracket set | Corner Brackets Blind Bracket |
|---|---|---|
| Product Photos |
|
|
| Installation Diagram |

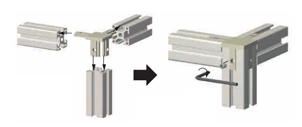

■ Example of using Corner Brackets HBLCR
| The position of the three frames
|
| Corner Brackets Material | S45C or SCS13 | S45C or SCS13 |
| Features | This product allows for 2-way and 3-way connections with just one Corner Brackets. Additional end tapping is required on the frame. | This Corner Brackets can be fitted to the end of a frame. It also functions as a frame cap. |
| Product page | 5 Series/ 6 Series/ 8 Series (viewing) | 5 Series/ 6 Series/ 8 Series |
