Temperature Sensors - Connector, K-Thermocouple
Brand :
MISUMI
Caution
Product Description
Temperature Sensors - Connector, K-Thermocouple
These Temperature Sensors Thermocouple type K are commonly used in manufacturing, plants and piping system
[Feature]
● Temperature Sensors : Thermocouple Type K
● Temperature Range (°C) :
Ø1.6 - 0~650°C
Ø3.2 - 0~750°C
● Crimp Terminal Type: M4 Y-Shaped 2 sets
● Material :
Connector - PPS
Sheath - SUS316
[Application]
It is used in a place where removing of sheath is difficult since replacement of lead wire is only required when the wire is broken.

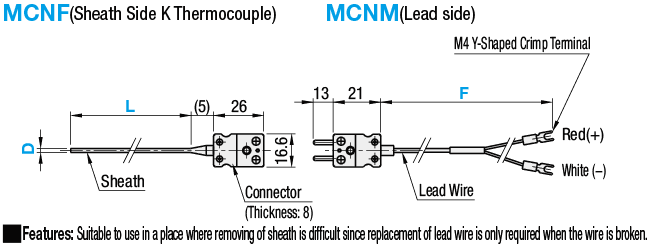

MCNF
| Type of Thermocouple | K Thermocouple | |
| Precision | JIS Class 2 | |
| Temperature Measurement Contact Point | Isolated Neutral Type | |
| Temperature Measurement Range | Ø1.6 | 0~650°C |
| Ø3.2 | 0~750°C | |
| [ M ] Material | Sheath | SUS316 |
| Connector | PPS | |
| Heat Resistance Temperature of Connector | 220°C | |
| Lead Wire (Operation Temperature Range) | Glass Wool Coating (0~150°C) | |
