Roller Conveyor Length Configurable - Roller Diameter 19mm
Brand :
MISUMI
Caution
- For the guide holder alteration KN, the number of brackets that can be selected depends on the L dimension.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
- Please be informed that the cut area surface of the frame is not surface treated.
Product Description

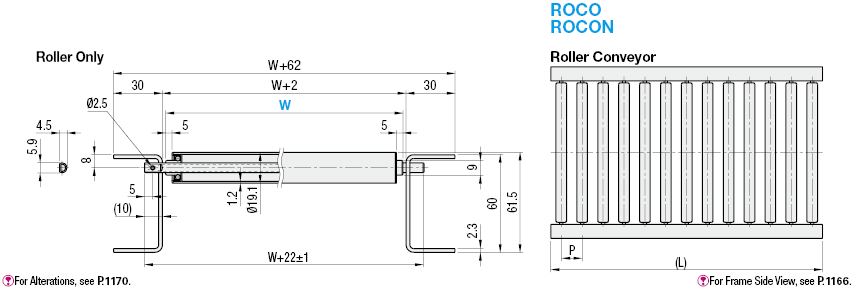

A steel free roller conveyor that allows you to specify the length. The roller diameter is 19mm.
It is highly versatile and can be used with gravity specifications. You can choose by selecting the roller pitch, length (1m or less), and width.
| Roller Pitch | Roller (HRO19) | Bearing | Frame | |||
| P=20 | P=30 | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ M ]Material | [ S ]Surface Treatment |
| ROCO | ROCON | Steel | Trivalent Chromate | Steel | Steel | Trivalent Chromate |
| Roller Pitch | R Pin | Frame Coupling Support | Screw, Nut | ||||
| P=20 | P=30 | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ S ]Surface Treatment |
| ROCO | ROCON | Steel | Trivalent Chromate | Steel | Trivalent Chromate | Steel | Trivalent Chromate |
