Guides-Straight Type/Compact/Standard
Brand :
MISUMI
Caution
Product Description
[Features]
• Compact Type has a shorter H dimension than Standard Type, helping conserve installation space.
[Use]
• Use as a machine, fixture, or assembly component where its listed configuration matches the required installation.

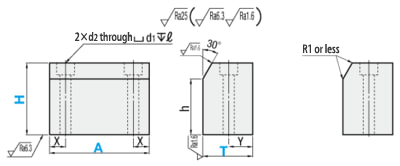

Round edge type
| Part Number | Material | Hardness | Surface treatment | ||
| Compact | Standard | Round edge type | |||
| WGHBC | WGHB | WGHBR | S45C Equivalent | — | Black Oxide |
| WGHMC | WGHM | WGHMR | Electroless Nickel Plating | ||
| — | WGHHB | WGHHBR | 40HRC or more | Black Oxide | |
| — | WGHHM | WGHHMR | Electroless Nickel Plating | ||
| — | WGHA | WGHAR | Aluminum alloy | — | — |
| WGHSC | WGHS | WGHSR | SUS304 | ||
| WGHJC | WGHJ | — | Polyacetal | ||
| WGHNC | WGHN | — | MC Nylon | ||
| — | WGHNE | — | Conductive MC Nylon R2 | ||
| — | WGHPT | — | PTFE | ||
