Locating Pins - Small Head, Tapered (Press Fit)
Caution
- The appearances of some products may be changed starting from August 2025. See the link below for details.
Information on Locating Pin Appearance Change - A machining step may remain at the base of the P dimension when diamond shape is selected.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
- Locating Pins - Small Head, Tapered (Press Fit) from MISUMI.
- Tapered Head Standard Type. Press Fit. Economical and there is a variety of selections to choose from. Same day shipping available.
- The material of locating pin can be selected 3 types, steel SKS3 Equivalent, stainless steel SUS304, SUS440C or 13Cr stainless.
- Polished, centering hole is sometimes not available for SUS304.
- SUS440C or 13Cr stainless has an identification groove at any position on D part.
- The insertion guide is applicable to both the tolerance m6 and p6.

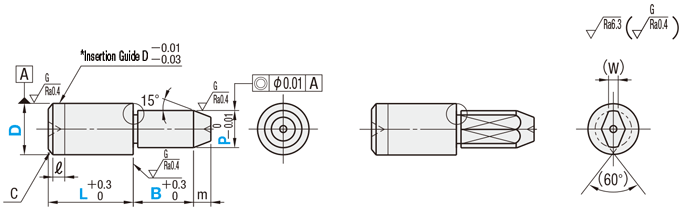

(Round)
(Diamond)
* The insertion guide is applicable to both the tolerance m6 and p6.
When P < 3
a = 0.5
d = P - 0.1
When P ≥ 3
a = 1.0
d = P - 0.2
[ ! ] Relief dimensions are reference values.
[ ! ] For SUS440C or 13Cr stainless steel, an identification groove is provided on D part, unless the L dimension is short.
[ ! ] SUS304 products may not be polished and have no centering hole.
[ ! ] When D = P, relief is also applied.
Material | [ M ] Material | [ S ] Surface Treatment | [ H ] Hardness | P Fixed | P Configurable | P, L, B Configurable | |||
No. | Type | D Tolerance and Shape Code | Type | D Tolerance and Shape Code | Type | D Tolerance and Shape Code | |||
(1) | SKS3 Equivalent | - | Treated Hardness: 60 to 63 HRC | JP | [Round] | JP | [Round] | FP | [Round] |
SB (m6) | SA (m6) | SA (m6) | |||||||
(2) | SKS3 Equivalent | Hard Chrome Plating | Treaded Hardness: 50 to 55 HRC | GJP | SPB (p6) | GJP | SPA (p6) | GFP | SPA (p6) |
Plating Hardness: 750 HV or more | |||||||||
(3) | SKS3 Equivalent | - | - | BJP | [Diamond] | BJP | [Diamond] | BFP | [Diamond] |
(4) | SUS304* | - | - | SJP | DS (m6) | SJP | SD (m6) | SFP | SD (m6) |
(5) | SUS304 | Hard Chrome Plating | Plating Hardness: 750 HV or more | HJP | DPS (p6) | HJP | SPD (p6) | HFP | SPD (p6) |
(6) | SUS440C or | - | Treaded Hardness: 50 to 55 HRC | CJP | CJP | CFP | |||
13Cr Stainless Steel | |||||||||
