Product DetailSpecification/Dimensions
-
Mounting Section Dia. M
-
Mounting Section Type
- Threaded
- Tapped
-
Mounting Section, Length L(mm)
-
Mounting Section, Material
- Steel
- Brass
- Steel
-
Threaded End Machining
- None
-
Set Screw Flat Machining
- None
-
Tapped, Round Hole Machining
- Blind Bore
-
Mounting Section, Surface Treatment
- Not Provided
- Trivalent Chromate
-
Main Body Dia. D(Ø)
-
Main Body Height H(mm)
-
type
- NPEF
- NPEM
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 3 Day(s) or Less
Specify Alterations
Five Lobe Knob
Click this image to zoom it.
Move the mouse over or click the image to zoom
- Until 30/04/2024
- Volume Discount
- All
- Sale Items
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- ฿ 54.60/Unit
-
- Qty :
-
-
- Days to Ship :
- ---
-
- Total Price :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
Five Lobe Knob
Knobs Screws are commonly used in various applications to secure, adjust, and control different mechanical devices. They offer a wide variety of sizes to choose from.
[Feature]
● Shape : Five Lobed Knobs
● Thread Size : M5, M6, M8 and M10
● Material :
Knobs - ABS
Screws - Male Thread (SS400), Female Thread (Brass )
[Application]
Knob Screws are commonly used in fastening, assembly, adjustment, clamping and so on

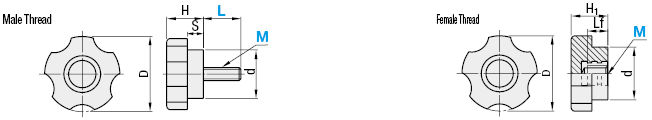

| Type | Screws | Knobs | Screws | |
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
| NPEM | Male Thread | ABS | SS400 | Chromate |
| NPEF | Female Thread | Brass (Insert) | - | |
Specifications
| Part Number | - | L |
| NPEM5 NHM10 | - - | 10 50 |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| NPEF5 |
| NPEF6 |
| NPEF8 |
| NPEF10 |
| NPEM5-10 |
| NPEM5-20 |
| NPEM6-20 |
| NPEM6-30 |
| NPEM8-30 |
| NPEM8-40 |
| NPEM10-30 |
| NPEM10-40 |
| Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Mounting Section Dia. M | Mounting Section Type | Mounting Section, Length L (mm) | Mounting Section, Material | Threaded End Machining | Set Screw Flat Machining | Tapped, Round Hole Machining | Mounting Section, Surface Treatment | Main Body Dia. D (Ø) | Main Body Height H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
฿ 68.25 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 5 | Tapped | - | Brass | - | None | Blind Bore | Not Provided | 35 | 17 | |
฿ 72.80 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 6 | Tapped | - | Brass | - | None | Blind Bore | Not Provided | 35 | 17 | |
฿ 100.10 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | 3 Day(s) | 10 | 8 | Tapped | - | Brass | - | None | Blind Bore | Not Provided | 42 | 18 | |
฿ 122.85 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 10 | Tapped | - | Brass | - | None | Blind Bore | Not Provided | 45 | 20 | |
฿ 54.60 ฿ 18.11 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Same day | 10 | 5 | Threaded | 10 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 35 | 14 | ||
฿ 54.60 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 5 | Threaded | 20 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 35 | 14 | |
฿ 59.15 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 6 | Threaded | 20 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 35 | 14 | |
฿ 59.15 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 6 | Threaded | 30 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 35 | 14 | |
฿ 72.80 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | Same day | 10 | 8 | Threaded | 30 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 42 | 16 | |
฿ 72.80 ฿ 62.30 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Same day | 10 | 8 | Threaded | 40 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 42 | 16 | ||
฿ 109.20 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Available | 3 Day(s) | 10 | 10 | Threaded | 30 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 45 | 17 | |
฿ 109.20 | PLASTIC FIVE LOBED KNOB | 1 Piece(s) | Same day | 10 | 10 | Threaded | 40 | [Steel] SS400 | None | - | - | [Trivalent Chromate] Chromate | 45 | 17 |
Loading...
Basic Information
| Main Body, Type | Polygonal Shape | Main Body Material | ABS | Polygonal Shape, Type | Five Lobed |
|---|---|---|---|---|---|
| Additional Function | None |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
