Expanded Metal Mesh - Unframed Type

Name: Expanded Metal Mesh - Unframed Type
Brand: MISUMI
Availability: PreOrder

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Brand :

MISUMI

Price :

---
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

Can serve as the vent cover or grating. Dimensions configurable in 1mm increment.

Type	[ M ]Material	[ S ]Surface Treatment	Color
EXPM	SUS304	-	Silver
EXPMB	SS400	Cathodic Electrodeposition Coating	Black

Specifications

Part Number	-	A	-	B
EXPM31	-	A325	-	B255

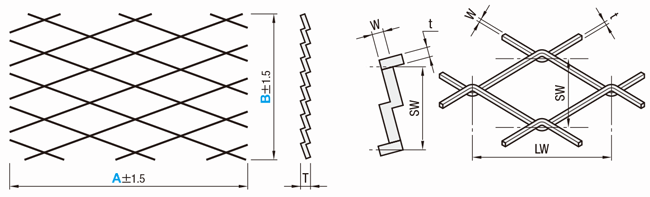

Part Number		1mm Increment		T	SW	LW	W	t	Mass kg/m²
Type	No.	A	B
EXPM EXPMB	31	100~1200	100~1000	3.5	12	30.5	1.5	1.2	2.36
	42			5.3	22	50.8	2.5	2.3	4.1

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
EXPM31-A[100-1200/1]-B[100-1000/1]
EXPM42-A[100-1200/1]-B[100-1000/1]
EXPMB31-A[100-1200/1]-B[100-1000/1]
EXPMB42-A[100-1200/1]-B[100-1000/1]

Price	Name	Minimum Order Qty.	Days to Ship	RoHS	Material	Surface Treatment	No. (Metal Thickness T) (mm)	A (mm)	B (mm)
-	EXPANDED METAL PLATES	1 Piece(s)	5 Day(s)	10	SUS304	-	31(3.5)	100 ～ 1200	100 ～ 1000
-	EXPANDED METAL PLATES	1 Piece(s)	5 Day(s)	10	SUS304	-	42(5.3)	100 ～ 1200	100 ～ 1000
-	EXPANDED METAL PLATES	1 Piece(s)	5 Day(s)	10	SS400	Cathodic Electrodeposition Coating	31(3.5)	100 ～ 1200	100 ～ 1000
-	EXPANDED METAL PLATES	1 Piece(s)	5 Day(s)	10	SS400	Cathodic Electrodeposition Coating	42(5.3)	100 ～ 1200	100 ～ 1000
