Configure

Clear All

Part number has not been determine

(24 Part Numbers Available)
Configure Remaining Specifications

Part Number Complete

NETSF4H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]
loading

Specification/Dimensions

  • Material

    • SUS304
    • SUS316
    • High Density Polyethylene

    Clear

  • Frame

    • With Frame
    • Without Frame

    Clear

  • Number of Frame Holes

    • 4H (Four Holes)
    • 6H (Six Holes)
    • 6HV (Six Holes)
    • 8H (Eight Holes)
    • NH (No Holes)

    Clear

  • Mesh Width(mm)

    • 3.0
    • 6.4

    Clear

  • Net Thickness D(mm)

    • 0.05
    • 0.37

    Clear

  • Number of Meshes per 1 inch ME

    • 20
    • 200

    Clear

  • A(mm)

     [100-1200/1mm Unit(s)]

    Clear

  • B(mm)

     [100-1000/1mm Unit(s)]

    Clear

  • C (Framed Type)(mm)

    • 4.5
    • 5.5
    • 6.5
    • 9
    • 15
    • 20

    Clear

  • Color

    • B (Black)
    • G (Green)

    Clear

  • d(mm)

    • 4.5
    • 5.5
    • 6.5
    • 6.9
    • 9

    Clear

  • type

    • NETSF□H
    • NETSJ
    • NETSJF□H
    • NETSUS

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • 5 Day(s) or Less
    • 7 Day(s) or Less

    Clear

Specify Alterations

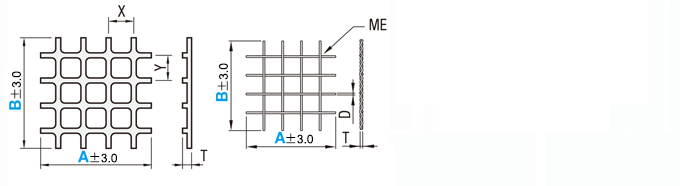

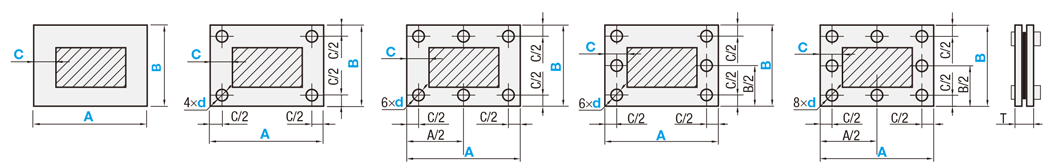

Net Plates - Unframed / Framed Type

Net Plates - Unframed / Framed Type

Click this image to zoom it.

Move the mouse over or click the image to zoom

  • Net Plates - Unframed / Framed Type
  • Net Plates - Unframed / Framed Type
  • Net Plates - Unframed / Framed Type
  • Net Plates - Unframed / Framed Type
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
24 Part Numbers Available

NETSF4H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF4H0.37-20-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF6H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF6H0.37-20-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF6HV0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF6HV0.37-20-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF8H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSF8H0.37-20-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

NETSFNH0.05-200-A[100-700/1]-B[100-700/1]-[15,20]

NETSFNH0.37-20-A[100-700/1]-B[100-700/1]-[15,20]

NETSJ0.5-3.0-A[100-1200/1]-B[100-1000/1]-B

NETSJ1-6.4-A[100-1200/1]-B[100-1000/1]-G

NETSJF4H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,20]-[4.5,5.5,6.5,9]

NETSJF4H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,20]-[4.5,5.5,6.5,9]

NETSJF6H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,20]-[4.5,5.5,6.9,9]

NETSJF6H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,20]-[4.5,5.5,6.5,9]

NETSJF6HV0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,20]-[4.5,5.5,6.5,9]

NETSJF6HV1-6.4-A[100-700/1]-B[100-700/1]-G-[15,20]-[4.5,5.5,6.5,9]

NETSJF8H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,20]-[4.5,5.5,6.5,9]

NETSJF8H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,20]-[4.5,5.5,6.5,9]

NETSF4H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]
NETSF4H0.05-200-A[100-700/1]-B[100-700/1]-[15,20]-[4.5,5.5,6.5,9]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Price :
    ---
  • Qty :
  • Days to Ship :
    ---
  • Total Price :
    ---

Select part number to Order Now/ Add to Cart

PDFP.2-942-2014

CAD Download
My Components
My Components
Similar ProductsSimilar Products
Product DetailProduct Detail

Product Description

Can be used for ventilation covers, filters, strainers, etc. You can select any size in 1mm increments.



Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
30
60
90
  1. 1
Part Number
NETSF4H0.05-200-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF4H0.37-20-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF6H0.05-200-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF6H0.37-20-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF6HV0.05-200-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF6HV0.37-20-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF8H0.05-200-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSF8H0.37-20-A[100-700/1]-B[100-700/1]-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSFNH0.05-200-A[100-700/1]-B[100-700/1]-[15,​20]
NETSFNH0.37-20-A[100-700/1]-B[100-700/1]-[15,​20]
NETSJ0.5-3.0-A[100-1200/1]-B[100-1000/1]-B
NETSJ1-6.4-A[100-1200/1]-B[100-1000/1]-G
NETSJF4H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF4H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF6H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,​20]-[4.5,​5.5,​6.9,​9]
NETSJF6H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF6HV0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF6HV1-6.4-A[100-700/1]-B[100-700/1]-G-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF8H0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJF8H1-6.4-A[100-700/1]-B[100-700/1]-G-[15,​20]-[4.5,​5.5,​6.5,​9]
NETSJFNH0.5-3.0-A[100-700/1]-B[100-700/1]-B-[15,​20]
NETSJFNH1-6.4-A[100-700/1]-B[100-700/1]-G-[15,​20]
NETSUS0.05-200-A[100-1000/1]-B[100-1000/1]
NETSUS0.37-20-A[100-1000/1]-B[100-1000/1]
Part NumberPriceNameMinimum Order Qty.Volume DiscountDays to ShipRoHSMaterial Frame Number of Frame Holes Mesh Width
(mm) 		Net Thickness D
(mm) 		Number of Meshes per 1 inch ME A
(mm) 		B
(mm) 		C (Framed Type)
(mm) 		Color d
(mm)

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS316With Frame4H (Four Holes)-0.05200100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS304With Frame4H (Four Holes)-0.3720100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS316With Frame6H (Six Holes)-0.05200100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS304With Frame6H (Six Holes)-0.3720100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS316With Frame6HV (Six Holes)-0.05200100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS304With Frame6HV (Six Holes)-0.3720100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS316With Frame8H (Eight Holes)-0.05200100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS304With Frame8H (Eight Holes)-0.3720100 ～ 700100 ～ 7004.5 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS316With FrameNH (No Holes)-0.05200100 ～ 700100 ～ 70015 ～ 20--

-

COVER PANEL 1 Piece(s) 7 Day(s) 10SUS304With FrameNH (No Holes)-0.3720100 ～ 700100 ～ 70015 ～ 20--

-

ALUMINUMFRAMEUNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWithout Frame-3.0--100 ～ 1200100 ～ 1000-B (Black)-

-

PLASTICNET 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWithout Frame-6.4--100 ～ 1200100 ～ 1000-G (Green)-

-

ALUMINUM FRAME UNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWith Frame4H (Four Holes)3.0--100 ～ 700100 ～ 70015 ～ 20B (Black)4.5 ～ 9

-

PLASTIC NET 1 Piece(s) 7 Day(s) 10High Density PolyethyleneWith Frame4H (Four Holes)6.4--100 ～ 700100 ～ 70015 ～ 20G (Green)4.5 ～ 9

-

ALUMINUM FRAME UNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWith Frame6H (Six Holes)3.0--100 ～ 700100 ～ 70015 ～ 20B (Black)4.5 ～ 9

-

PLASTIC NET 1 Piece(s) 7 Day(s) 10High Density PolyethyleneWith Frame6H (Six Holes)6.4--100 ～ 700100 ～ 70015 ～ 20G (Green)4.5 ～ 9

-

ALUMINUM FRAME UNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWith Frame6HV (Six Holes)3.0--100 ～ 700100 ～ 70015 ～ 20B (Black)4.5 ～ 9

-

PLASTIC NET 1 Piece(s) 7 Day(s) 10High Density PolyethyleneWith Frame6HV (Six Holes)6.4--100 ～ 700100 ～ 70015 ～ 20G (Green)4.5 ～ 9

-

ALUMINUM FRAME UNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWith Frame8H (Eight Holes)3.0--100 ～ 700100 ～ 70015 ～ 20B (Black)4.5 ～ 9

-

PLASTIC NET 1 Piece(s) 7 Day(s) 10High Density PolyethyleneWith Frame8H (Eight Holes)6.4--100 ～ 700100 ～ 70015 ～ 20G (Green)4.5 ～ 9

-

ALUMINUM FRAME UNITS 1 Piece(s) 5 Day(s) 10High Density PolyethyleneWith FrameNH (No Holes)3.0--100 ～ 700100 ～ 70015 ～ 20B (Black)-

-

PLASTIC NET 1 Piece(s) 7 Day(s) 10High Density PolyethyleneWith FrameNH (No Holes)6.4--100 ～ 700100 ～ 70015 ～ 20G (Green)-

-

COVERPANEL 1 Piece(s) 5 Day(s) 10SUS316Without Frame--0.05200100 ～ 1000100 ～ 1000---

-

COVER PANEL 1 Piece(s) 5 Day(s) 10SUS304Without Frame--0.3720100 ～ 1000100 ～ 1000---
