Integrated Casters & Leveling Mounts - Standard, Conductive, Side Mount
Brand :
MISUMI
Caution
- Casters and leveling mounts are not sold separately.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
A unit featuring a leveling mount and caster, designed for optimal relocation and movement of aluminum extrusion units with a focus on design. Bolts and nuts for mounting to aluminum extrusions are also included, improving work efficiency. Units are available for each of the 5, 6, 8, and 10 series.

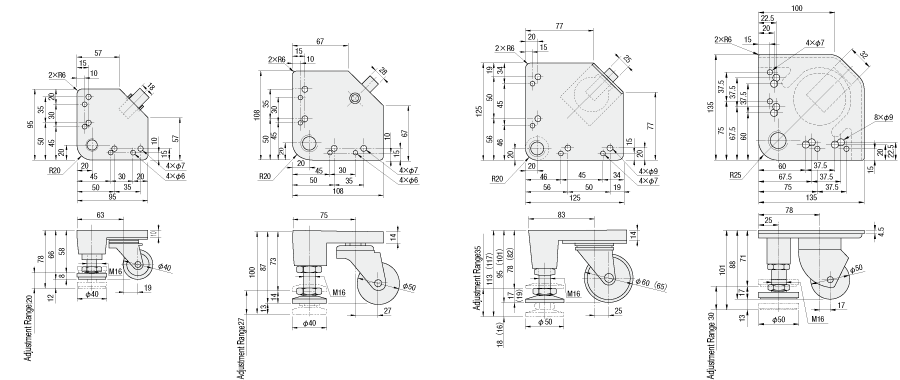

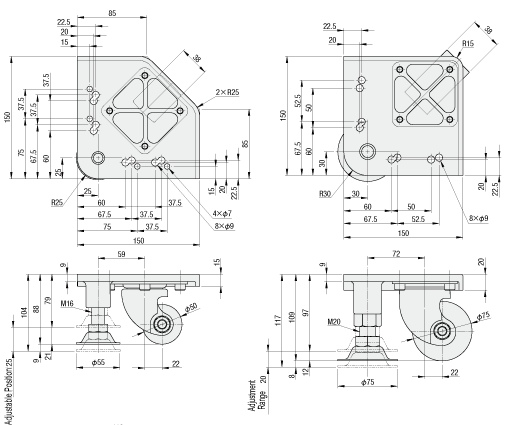

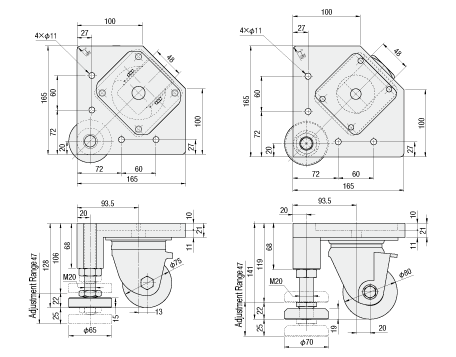

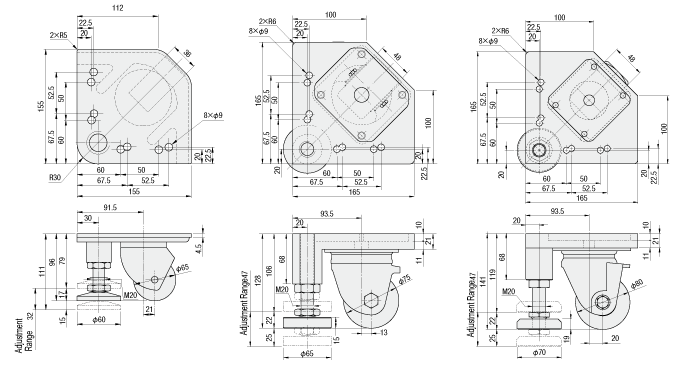

Dimensional Drawing
Swiveling Caster (Swivel 360°)
HCFT
No.5－60
6－60
No.5－60
6－60
SHCFT
No.5－60
6－60
No.5－60
6－60
HCFTSHCFT
HCFTMSHCFTD
HCFTD
No.6－130
8－130
HCFTMSHCFTD
HCFTD
No.6－130
8－130
HCFTHCFTM
HCFTUHCFTD
No.6－250
8－250
HCFTUHCFTD
No.6－250
8－250
[ ! ]The values in ( ) are for
Stainless Steel Pad Type.
SHCFT
SHCFTM
SHCFTD
No.6－250
No.8－250
SHCFTM
SHCFTD
No.6－250
No.8－250
SHCFT
SHCFTM
SHCFTD
No.8－320
SHCFTM
SHCFTD
No.8－320
HCFTHCFTM
HCFTUHCFTD
No.8－350
HCFTUHCFTD
No.8－350
HCFT
HCFTM
HCFTD
No.8－500
HCFTM
HCFTD
No.8－500
HCFTM
No.8－800
No.8－800
HCFT
HCFTM
HCFTD
No.10－500
HCFTM
HCFTD
No.10－500
HCFTM
No.10－800
No.10－800

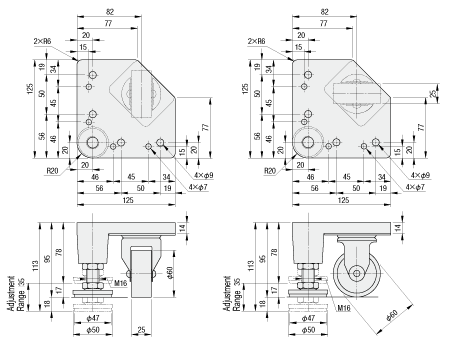

Fixed Caster (Does not rotate)
HCFTK－R
No.6－130
8－130
No.6－130
8－130
HCFTK－L
No.6－130
8－130
No.6－130
8－130
[!]When moving the unit using the casters, raise the leveling mounts completely.
[!]The contact angle of the leveling mount is within approximately ±1.0°.
[!] The thread of leveling mount is coarse.
[!] Please check the pad shape in the CAD data.
[!] For products with the same type and dimensional drawing but different applicable extrusion numbers, the applicable bolt and nut are different, but the main body is the same.
Example: The applicable bolt and nut differ between HCFT6-130 for the 6 Series and HCFT8-130 for the 8 Series, but there are no other differences.
| Type | Load | Plate | Jack Bolt | Pad Bottom Surface | Wheel | ||
| [M] Material | [S] Surface Treatment | [M] Material | [S] Surface Treatment | [M] Material | [M] Material | ||
| HCFT HCFTK-L HCFTK-R | 60 | ADC12 | Black Paint | SS400 | Trivalent Chromate | Rubber (EPDM) | Nylon (Gray) |
| 130 | |||||||
| 250 | SPHC | Trivalent Chromate (Black) | Nylon (Black) | ||||
| 350 | |||||||
| 500 | FCD45 | Black Paint | ― | Phenol (Black) | |||
| 800 | |||||||
| HCFTD | 130 | ADC12 | Black Paint | Conductive Monomer Casting Nylon (Black) | |||
| 250 | SPHC | Trivalent Chromate (Black) | |||||
| 350 | |||||||
| HCFTM | 130 | ADC12 | Black Paint | Rubber (EPDM) | Monomer Casting Nylon (Blue) | ||
| 250 | SPHC | Trivalent Chromate (Black) | |||||
| 350 | |||||||
| 500 | FCD45 | Black Paint | ― | ||||
| 800 | Monomer Casting Nylon (Black) | ||||||
| HCFTU | 250 | SPHC | Trivalent Chromate (Black) | Rubber(EPDM) | Urethane (Green) | ||
| 350 | ― | ||||||
| Type | Load | Plate | Jack Bolt | Wheel | ||
| [M] Material | [S] Surface Treatment | [M] Material | [S] Surface Treatment | [M] Material | ||
| SHCFT | 60 | ADC12 | Black Paint | SUS304 | - | Nylon (Black) |
| 130 | ||||||
| 250 | SCS13 | |||||
| 320 | ||||||
| SHCFTD | 130 | ADC12 | Conductive Monomer Casting Nylon (Black) | |||
| 250 | SCS13 | |||||
| 320 | ||||||
| SHCFTM | 250 | SCS13 | Monomer Casting Nylon (Blue) | |||
| 320 | ||||||
| Next Day Shipping >>here |
| Qty. Category | Std. Order | Spl. Order |
| Sm. Qty. | Lg. Qty. | |
| Qty. | 1 to 50 | 51 or more |
| Days to Ship | Std. | To Be Quoted |
For information about Days to Ship, please see here.
Specifications / Overview
* The height from the floor can be increased by using a longer leveling mount.
However, the leveling mount sticks out from the plate surface.
However, the leveling mount sticks out from the plate surface.
