One-Side Rib Bracket - 6 Series, 8mm Slot, 1 Slot
Brand :
MISUMI
Caution
Product Description
The rib (side) is only on one side, making it easy to turn a hex key.

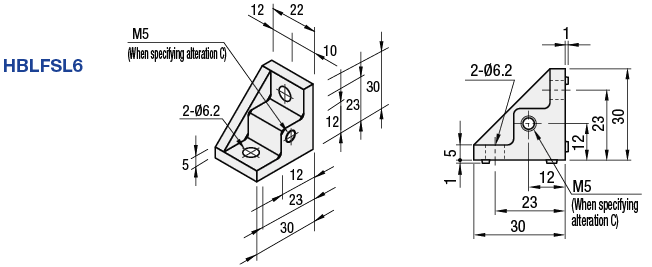

Dimensional Drawing of 90 degree Brackets
90 degree Brackets HBLFSL6
[ ! ]For the squareness of the 90 degree Brackets, please refer to the squareness tolerance table .
[ ! ]Bolts and nuts can also be purchased as a set. Please see the additional processing below.
[ M ]Material: ADC12 [ S ]Surface treatment: None
[ ! ]For the squareness of the 90 degree Brackets, please refer to the squareness tolerance table .
[ ! ]Bolts and nuts can also be purchased as a set. Please see the additional processing below.
[ M ]Material: ADC12 [ S ]Surface treatment: None
Specification Table of 90 degree Brackets
| 90 degree Brackets Model |
| HBLFSL6 |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
[ ! ]Bolts and nuts are not included with the 90 degree Brackets.
Please check the table below for compatible bolts and nuts.
If you would like to purchase a bolt and nut set, please select from the narrowing conditions [Accessories].
For detailed specifications, please check the links for each product under "Applicable bolts and nuts set" (can be purchased separately).
| 90 degree Brackets Model | mass | Compatible bolts and T-nuts (specify additional work) | Allowable load | |||
| (g) | bolt | Quantity | T-Nut | Quantity | (N) | |
| HBLFSL6 | 17 | CBM6-12 | 2 | HNTT6-6 | 2 | 1176 |
Additional Work of 90 degree Brackets
| 90 degree Brackets Model | - | Cover mounting hole processing | - | Bolt and nut set |
| HBLFSL6 | - | - | SET | |
| HBLFSL6 | - | C | - | SET |
■Additional cover mounting holes
| Alterations | Code | Spec. | Applicable 90 degree Brackets |
| Additional cover mounting holes | C | The 90 degree Brackets can have M5 tapped holes on both sides for mounting the cover . Model example: HBLFSL6-C (mounting screwhereHCBM)  | HBLFSN6 |
| HBLFSN6-5 | |||
| HBLFSNB6 | |||
| HBLFSNM6 | |||
| CHBLFSN6 | |||
| HBLFS6 | |||
| HBLFSB6 | |||
| HBLFSL6 | |||
| HBLFSR6 | |||
| HBLFSNK6 | |||
| HBLFSNE6 | |||
| HBLFSH6 |

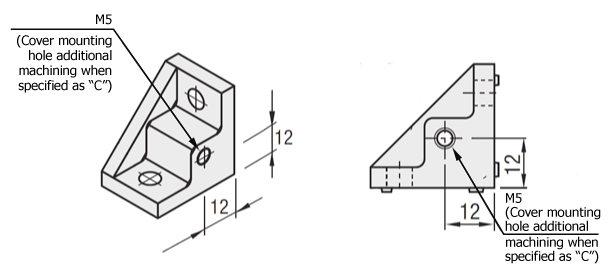

・Cover mounting hole location diagram
■Applicable bolt and nut set additional processing
[ ! ]The bolts for the black anodized and cathodic electroplated (black) 90 degree Brackets aretheseHCBMTB (black trivalent chromate).
[ ! ]When specifying -SET, -SEU, or -SEP for 90 degree Brackets other than black anodized and cathodic electroplated (black), the included bolts are not RoHS compliant.
| Alterations | Code | Spec. | Applicable 90 degree Brackets | |||||||||||||||||||||||||||||||||
| Applicable bolts and nuts included | SET SST (Stainless steel) SEU (Pre-assembly spring nut) SSU (Pre-assembly spring nut) (Stainless steel) SEP (Post-assembly spring nut) SSP (Post-assembly spring nut) (Stainless steel) SEC (Washer assembled bolt/nut) | The applicable bolts and nuts for attaching the 90 degree Brackets to the frame are included in the set. (Added to the 90 degree Brackets price) (Example) When HBLFSL6 is specified
[ ! ]When specifying a type other than HBLFSL6, please check the appropriate bolts and nuts. | - | |||||||||||||||||||||||||||||||||
| HBLFSN6 | ||||||||||||||||||||||||||||||||||||
| HBLFSN6-5 | ||||||||||||||||||||||||||||||||||||
| HBLFSNB6 | ||||||||||||||||||||||||||||||||||||
| HBLFSNM6 | ||||||||||||||||||||||||||||||||||||
| CHBLFSN6 | ||||||||||||||||||||||||||||||||||||
| HBLFS6 | ||||||||||||||||||||||||||||||||||||
| HBLFSB6 | ||||||||||||||||||||||||||||||||||||
| HBLFSL6 | ||||||||||||||||||||||||||||||||||||
| HBLFSR6 | ||||||||||||||||||||||||||||||||||||
| HBLFSNK6 | ||||||||||||||||||||||||||||||||||||
| HBLFSNE6 | ||||||||||||||||||||||||||||||||||||
| HBLFSH6 | ||||||||||||||||||||||||||||||||||||
[ ! ]When specifying -SET, -SEU, or -SEP for 90 degree Brackets other than black anodized and cathodic electroplated (black), the included bolts are not RoHS compliant.
■ Details of applicable bolt and nut sets (can be purchased separately)
| Alteration code | bolt | nut | ||||
|---|---|---|---|---|---|---|
| Model | Material | type | Model | Material | Stopper | |
| SET | CBM6-12 | iron | First in | HNTT6-6 | iron | none |
| SST | SCB6-12 | stainless | First in | HNTTSN6-6 | stainless | none |
| SEU | CBM6-12 | iron | First in | HNTU6-6 | iron | Yes |
| SSU | SCB6-12 | stainless | First in | SHNTU6-6 | stainless | Yes |
| SEP | CBM6-12 | iron | Later insertion | HNTP6-6 | iron | Yes |
| SSP | SCB6-12 | stainless | Later insertion | SHNTP6-6 | stainless | Yes |
| SEC | HCBST6-15 | Iron (with washer) | First in | HNTT6-6 | iron | none |
How to Use of 90 degree Brackets
- This type has a protrusion that fits into the frame groove.
The protrusion acts as a rotation 90 degree Brackets during fastening work, making it easy to work with. - This type has a rib (side) on only one side, making it easy to turn the hex wrench.
[ ! ]Cover plate thicknesses of both 5 mm and 3 mm can be matched to the frame surface.
Technical Information of 90 degree Brackets
■ Perpendicularity
[ ! ]For other 90 degree Brackets perpendicularity, please refer to the perpendicularity tolerance table .
■ 90 degree Brackets allowable load concept
As shown in the left figure, two frames are set up, a frame is placed between them, and two 90 degree Brackets are attached underneath, and the allowable load per unit is shown.
The allowable load here indicates the load at which the 90 degree Brackets can maintain its position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.
The allowable load here indicates the load at which the 90 degree Brackets can maintain its position (without breaking or slipping) when all mounting holes on the 90 degree Brackets are fixed with bolts and a load is applied.
