Frame End Caps For 5 Series (Slot Width 6mm) Aluminum Frames
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
This is Frame cap for protecting frame end faces. Using with Aluminum Frame Series 5 (Slot width 6mm)
Dimensional Drawing of Frame Caps
| Type | [M] Frame Caps Material |
| HFC | polyamide |
| HFCL | Low Density Polyethylene |
Specification Table of Frame Caps
| Frame Caps Model | − | color |
| HFC30A5 | − | B |
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Frame Caps Model | color | Supported Frames | |
| Type | No. | ||
| HFC5 | 2020 | B (Black) S (Light Gray) | May-2020 |
| 2040 | 5−2040 | ||
| 2060 | 5−2060 | ||
| 4040 | 5−4040 | ||
| 4060 | 5−4060 | ||
| 404020 | 5−404020 | ||
| 2525 | 5−2525 | ||
| 2550 | 5−2550 | ||
| HFCL5 | 2020 | May-2020 | |
| 2040 | 5−2040 | ||
| HFC30A5 | 30A5−20 | ||
| HFC45A5 | 45A5−20 | ||
| HFC60A5 | 60A5−20 | ||
| HFCR5-2020 | May-2020 | ||
Aluminum Frame Compatibility Chart of Frame Caps
| Frame Caps Type | Compatible Frame Caps | ||
| Model | color | explanation | |
| HFS5-2020 | HFC5-2020-B | black | Standard type (black) |
| HFSF5-2020 | HFC5-2020-S | Light Grey | Standard type (light gray) |
| HFST5-2020 | HFCL5-2020-B | black | Long-legged type that won't easily fall off (black) |
| HFSH5-2020 | HFCL5-2020-S | Light Grey | Long-legged type that won't easily fall off (light gray) |
| HFSC5-2020 | |||
| HFSB5-2020 | |||
| HFSFB5-2020 | |||
| HFSTB5-2020 | |||
| NFS5-2020 | |||
| NFSF5-2020 | |||
| NFST5-2020 | |||
| NFSB5-2020 | |||
| CAF5-2020 | |||
| HFSY5-2020 | |||
| HFS5-2040 | HFC5-2040-B | black | Standard type (black) |
| HFSF5-2040 | HFC5-2040-S | Light Grey | Standard type (light gray) |
| HFSB5-2040 | HFCL5-2040-B | black | Long-legged type that won't easily fall off (black) |
| NFS5-2040 | HFCL5-2040-S | Light Grey | Long-legged type that won't easily fall off (light gray) |
| NFSF5-2040 | |||
| CAF5-2040 | |||
| HFS5-4040 | HFC5-4040-B | black | Standard type (black) |
| HFSF5-4040 | HFC5-4040-S | Light Grey | Standard type (light gray) |
| HFST5-4040 | HFCL5-2040-B | black | Long-legged type that won't come off easily (black) 2 pieces |
| HFSB5-4040 | HFCL5-2040-S | Light Grey | Long-legged type that won't come off easily (light gray) 2 pieces |
| NFS5-4040 | |||
| NFSF5-4040 | |||
| NFSB5-4040 | |||
| CAF5-4040 | |||
| HFS5-2060 | HFC5-2060-B | black | Standard type (black) |
| NFS5-2060 | HFC5-2060-S | Light Grey | Standard type (light gray) |
| HFS5-4060 | HFC5-4060-B | black | Standard type (black) |
| NFS5-4060 | HFC5-4060-S | Light Grey | Standard type (light gray) |
| HFS5-2080 | HFC5-2040-B | black | Standard type (black) |
| NFS5-2080 | HFC5-2040-S | Light Grey | Standard type (light gray) |
| HFS5-4080 | HFC5-4040-B | black | Standard type (black) |
| NFS5-4080 | HFC5-4040-S | Light Grey | Standard type (light gray) |
| HFS5-2525 | HFC5-2525-B | black | Standard type (black) |
| NFS5-2525 | HFC5-2525-S | Light Grey | Standard type (light gray) |
| HFSB5-2525 | |||
| HFS5-2550 | HFC5-2550-B | black | Standard type (black) |
| NFS5-2550 | HFC5-2550-S | Light Grey | Standard type (light gray) |
| HFSB5-2550 | |||
| HFS30A5-20 | HFC30A5-B | black | Standard type (black) |
| HFC30A5-S | Light Grey | Standard type (light gray) | |
| HFS45A5-20 | HFC45A5-B | black | Standard type (black) |
| HFC45A5-S | Light Grey | Standard type (light gray) | |
| HFS60A5-20 | HFC60A5-B | black | Standard type (black) |
| HFC60A5-S | Light Grey | Standard type (light gray) | |
| HFS5-404020 | HFC5-404020-B | black | Standard type (black) |
| HFC5-404020-S | Light Grey | Standard type (light gray) | |
| HFSR5-404020 | HFCR5-404020 | Silver | End Plate |
| HFSR5-2020 | HFCR5-2020-B | black | Standard type (black) |
| NFSR5-2020 | HFCR5-2020-S | Light Grey | Standard type (light gray) |
For other types of 5 series Frame Caps, please refer to the following.
5 series (slot width 6mm) Frame Caps for aluminum frames, bolt-fixing type, clickhere 5 series (slot width 6mm) Corner 3-sided caps for 20-corner aluminum frames, click here 5 series (slot width 6mm) End plates for aluminum frames, click here
How to Use of Frame Caps
When using the aluminum frame HFS5-2080,
use two HFC5-2040.
Technical Information of Frame Caps
■How to make the Frame Caps flush:
Shorten the length of the aluminum frame by the thickness of the Frame Caps.

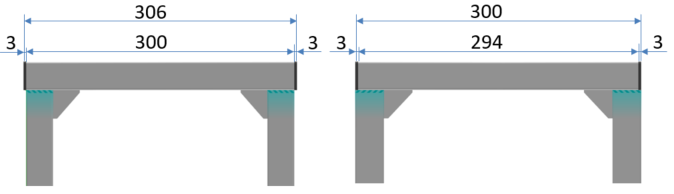

<Example: Bracket connection: When connecting with one side 300 mm long>
A: Specify the model number that protrudes to account for the thickness of the Frame Caps,
HFS6-3030-300, with a length of 300 mm.
B: Specify the model number for the Frame Caps that does not protrude and is flush,
HFS6-3030-294, shorter by the thickness of the Frame Caps.
A: Specify the model number that protrudes to account for the thickness of the Frame Caps,
HFS6-3030-300, with a length of 300 mm.
B: Specify the model number for the Frame Caps that does not protrude and is flush,
HFS6-3030-294, shorter by the thickness of the Frame Caps.
A Frame Caps pops out
B Frame Caps is flush and
does not protrude

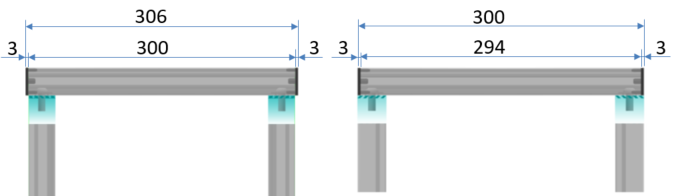

<Example: Screw joint connection: When connecting with a side length of 300 mm>
*Alterations (FR/FL) for "2.5 mm thickness" are not currently supported.C
: For the Frame Caps thickness, specify the protruding
model HFS6-3030-300-RCV-LCV and 300 mm length with wrench holes on the left and right.D
: For the Frame Caps that does not protrude and is flush,
specify the model HFS6-3030-294-RCV-LCV-FR-FL, shortened by the Frame Caps thickness, and specify wrench holes and wrench hole shifts on the left and right.
*Alterations (FR/FL) for "2.5 mm thickness" are not currently supported.C
: For the Frame Caps thickness, specify the protruding
model HFS6-3030-300-RCV-LCV and 300 mm length with wrench holes on the left and right.D
: For the Frame Caps that does not protrude and is flush,
specify the model HFS6-3030-294-RCV-LCV-FR-FL, shortened by the Frame Caps thickness, and specify wrench holes and wrench hole shifts on the left and right.
C Frame Caps pops out
D Frame Caps are flush and
do not protrude
5 Series Related Parts of Frame Caps
| Product name | Aluminum frame | bracket | Blind Joint | Groove cover | nut |
|---|---|---|---|---|---|
| photograph |  |  |  |  |  |
| Product page | Here | Here | Here | Here | Here |
