Rack Gear Round Rack - L Fixed / Configurable, Pressure Angle 20°
Brand :
MISUMI
Caution
- [New Product]For round rack gears made of polyacetal, the warp will remain during the manufacturing process.
Please correct it while assembling. Thank you for your understanding.
Product Description
[Features] There are two types of round rack gear: L dimension fixed type and L dimension specified type.
The L size fixed type is a standard length, and the specified type can be specified with a length of 1 mm.
Both cannot be used by connecting with other rack gears.
Added material polyacetal!

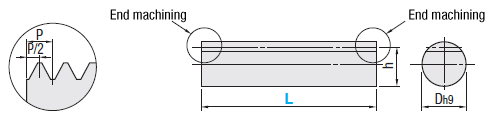

Dimensional Drawing
[ ! ] For the L configurable type, this can be positioned as desired at one end
Enlarged View of End Face
Accuracy: Accumulated Pitch Error (Unit: µm)
[ ! ] Values in ( ) are for RGMAS and RGMAP.
| Module | Nominal, Overall Length L | ||
| Up to 100 | 101 to 300 | 301 to 500 | |
| 0.5 to 1.5 | 54 (76) | 65 (92) | 72 (101) |
| 2.0 to 3.0 | 62 (86) | 73 (102) | 80 (112) |
Mass per Unit Length
| ■Overall Length L Tolerance of S45C, SUS303
| ■Overall Length L Tolerance of White Polyacetal
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
[!] Use the above mass for reference only. There may be some errors. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | [M] Material | [S] Surface Treatment | |
| L Fixed | L Configurable | ||
| RGMA | RGMAL | S45C | Black Oxide |
| RGMAS | RGMASL | SUS303 | — |
| RGMAP | RGMAPL | White Polyacetal | — |
App. Example
