Bevel Gear-Straight Type/Spiral Type/Pressure Angle 20Deg.
Brand :
MISUMI
Caution
Product Description
Bevel gears capable of transmitting force at a right angle.
[Specifications]
· Pressure Angle: 20°
· Type: Straight/Spiral
· Module: 1.0, 1.5, 2.0
· Material: Steel (S45C Equivalent)/Stainless Steel (SUS304)
· Surface treatment: None/Black Oxide/Electroless Nickel Plating

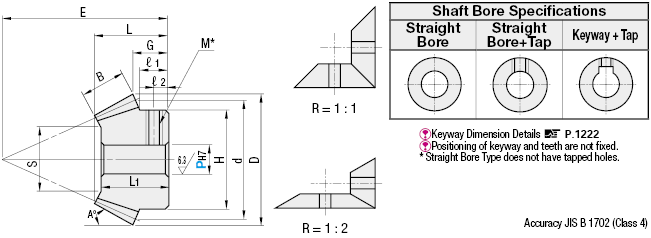

| Type | [ M ]Material | [ S ]Surface Treatment | [ A ]Accessory | ||||
| Straight Type | Spiral Type | ||||||
| Straight Bore | Straight Bore+Tap | Keyway + Tap | Straight Bore+Tap | Keyway + Tap | |||
| KGEASH | KGEAST | KGEASK | KGEAPT | KGEAPK | S45C Equivalent | - | Set Screw *Except Straight Bore Type. |
| KGEASHB | KGEASTB | KGEASKB | KGEAPTB | KGEAPKB | Blackening | ||
| KGEASHG | KGEASTG | KGEASKG | KGEAPTG | KGEAPKG | Electroless Nickel Plating | ||
| KGHS | KGTS | KGKS | - | - | SUS304 Equivalent | - | |
