Far Infrared Ceramic Plate Heaters/Far Infrared Plate Heaters

Brand :
MISUMI

Caution

  • The mounting plate thickness should be between 1 and 2 mm.
  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

[Features]
• Far-infrared heater with ceramic exothermic part and 200 V voltage.
• Ceramic, insulated and sensor-equipped types support matching heater structure to temperature-control needs.
[Use]
• Suitable for heating, firing, drying, softening, preheating, curing, aging and heat retention.

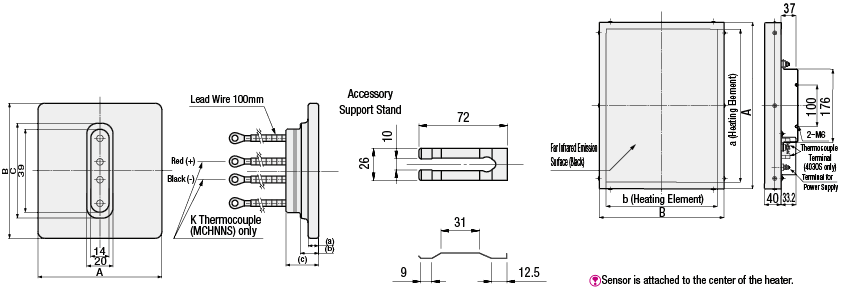

MCHN
MCHNN
MCHNNSMCHNP
Type[ M ] Material[ A ] Accessory
HeaterElementLead Wire
MCHN (Standard)CeramicsNCHW2Glass Wool CoatingBracket (SUS304)
MCHNN (Heat Insulating Highly-efficient Type)Ceramic Heat Insulation Material
MCHNNS (Heat Insulating Highly-efficiency Type with Built-in Temperature Sensor)
Type[ M ] MaterialThermocouple
Plate FramePlate Surface
MCHNP(Far Infrared Plate Heaters)SUS304Aluminum + Far Infrared CoatingK Thermocouple (4030S only)
