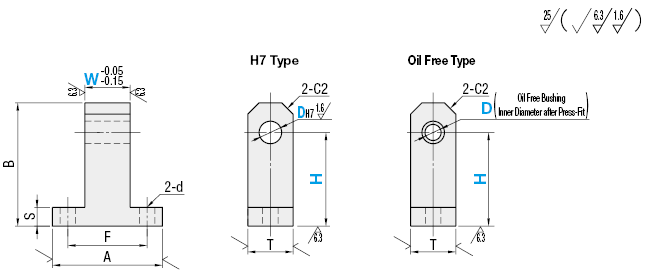

Hinge Bases - Standard T Shaped
Brand :
MISUMI
Caution
Product Description
[Specification expansion]
Added stainless steel products with high rust resistance and electroless nickel plated products.
[Features]
A general-purpose hinge base that allows you to specify the H dimension (height) in 1mm increments.
| W Dimension Fixed Type | W, H Dimension Configurable Type | [ M ] Material | [ S ]Surface Treatment | ||
| H7 Type | Oil Free Type | H7 Type | Oil Free Type | ||
| HKTB | HKTBM | HGBTB | HGBTBM | S45C Equivalent | Black Oxide |
| HKTM | - | HGBTM | - | Electroless Nickel Plating | |
| HKTS | - | HGBTS | - | SUS304 Equivalent | - |
App. Example
