Suction Cup Units Standard/Deep/Small Type
Brand :
MISUMI
Caution
- The surfaces that do not come into contact with the workpiece on VPUE and VPJS are engraved for material identification.
(Sequentially for deliveries from October 2023. Both engraved and non-engraved products will be mixed during the inventory turnover period.) - Please check the content on our website as the PDF does not contain the most up-to-date information.
- Manufacturer : PISCO
Product Description

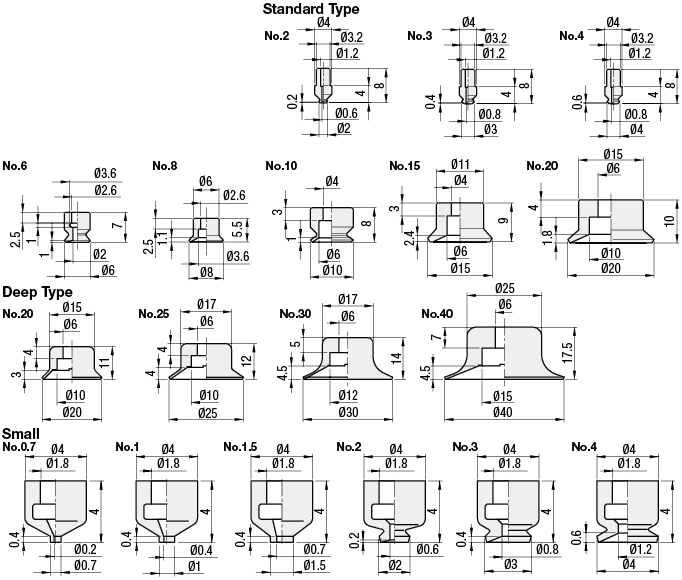

[Features]·A vacuum pad alone. ·Available in standard, deep, and compact types.
・Materials
| Type | [ M ]Material | Pad Shape | [ H ]Hardness | Color |
| VPNT | Nitrile Rubber | Standard | Shore A50 ~ 80 | Black |
| VPUE | Conductive Silicon Rubber | Shore A60 | Black | |
| VPUF | Fluoro Rubber | Shore A60 ~ 70 | Gray | |
| VPFT | Nitrile Rubber | Deep | Shore A50 ~ 80 | Black |
| VPFF | Fluoro Rubber | Shore A60 ~ 70 | Gray | |
| VPJN | Nitrile Rubber | Small | Shore A50 ~ 80 | Black |
| VPJS | Conductive Silicon Rubber | Shore A60 | Black | |
| VPJF | Fluoro Rubber | Shore A60 ~ 70 | Gray |
More Information
■Specifications
| Type | VPNT, VPFT, VPJN | VPUE, VPJS | VPUF, VPFF, VPJF | |
| Max. Operating Temp. | 110° | 180° | 230° | |
| Min. Operating Temp. | -30° | -40° | -10° | |
| Weather Resistance | △ | ◎ | ○ | |
| Ozone Resistance | △ | ◎ | ◎ | |
| Acid Resistance | △ | ○ | ◎ | |
| Alkali Resistance | ○ | ◎ | × | |
| Oil Resistance | (Gasoline, Light Oil) | ◎ | △ | ◎ |
| (Benzene, Toluene) | △ | △ | ◎ | |
| Surface Resistivity | - | 104~106Ω/sq | - | |
