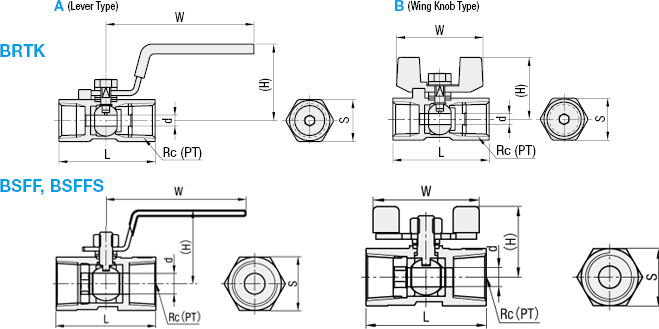

Ball Valves/Stainless Steel/PT Male/PT Female
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
- [Specification Change] The lever color and main body engraving of BSFF□ and BSFFS□, and the main body material of BSFFS□ will be changed sequentially starting in June 2025.
Some part numbers are not subject to specification changes. Please see here for details.
Product Description
[Features]This ball valve has a compact main body size and takes up little space for installation.
| Type | Material | Max. Operating Pressure | |
| Main Body | Ball Seat | ||
| BRTK□ | C3771BE | Fluororesin containing Glass Fiber | Water, Oil, Air: 4.12MPa |
| BSFF□ | SCS13A | Fluororesin | Water, Oil, Air, Gas: 4.12MPa Saturated Steam: 1MPa |
| BSFFS□ | SCS16A | Fluororesin | |
