Suction Cup Units Soft/Soft Bellows

Brand :

MISUMI

Caution

Set includes pads, adaptors and gaskets.
The surface that does not come into contact with the workpiece on VPCE is engraved for material identification.
(Sequentially for deliveries from October 2023. Both engraved and non-engraved products will be mixed during the inventory turnover period.)
The inner diameter of the VPDT6 has been changed from ø2.2 to ø2.5.
Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

[Features]·This vacuum pad is suitable for absorbing scratchy workpieces.

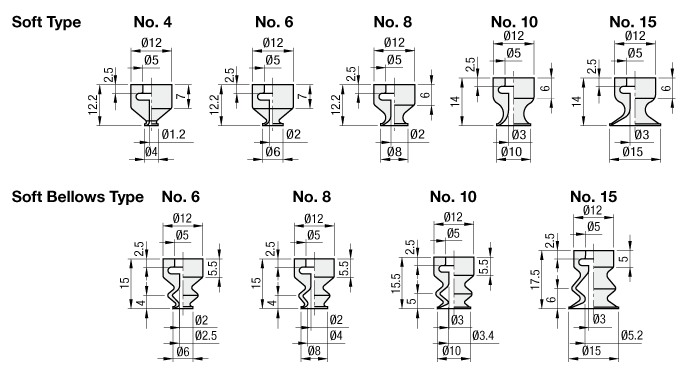

Suction Cups - Soft / Soft Bellows:Related Image

Adaptor・Gaskets

Part Name	[ M ]Material	[ S ]Surface Treatment
Adaptor	Brass	Electroless Nickel Plating
Gasket	SUS304・NBR	N/A

*Adaptors and gaskets are not mounted to the pads.

・Materials

Type	[ M ]Material	Pad Shape	[ H ]Hardness	Color
VPCT	Nitrile Rubber	Soft	Shore A40 ~ 45	Black
VPCE	Conductive Silicon Rubber	Soft	Shore A60	Black
VPDT	Nitrile Rubber	Soft Bellows	Shore A40 ~ 45	Black
