Ball Valves/Stainless Steel/High Flow Rate/PT Female/PT Female
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
- [Specification Change] The main body material, lever color, and main body engraving of BSCSF will be changed sequentially starting in June 2025. Please see here for details.
Product Description

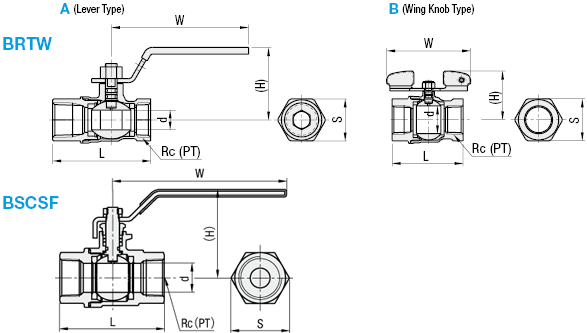

[Main Body Shape]Straight "Main body material" You can choose C3771BE or SCS16A.
| Type | Material | Max. Operating Pressure | |
| Main Body | Ball Seat | ||
| BRTW□ | C3771BE | Fluororesin containing Glass Fiber | Water, Oil, Air: 4.12MPa |
| BSCSF | SCS16A | Fluororesin | Water, Oil, Air, Gas: 4.12MPa Saturated Steam: 1MPa |
