[Features]A tapered screw of screw type R (PT male thread). The MSWTP is a floating plug.
Type | Material | Surface Treatment | |
Without Thread Coating | Thread Coated Type | ||
MSWT | MSWTK | Alloy Steels for Machine Structure Carbon Steels for Cold Heading | Black Oxide |
MSWTM | MSWTMK | Electroless Nickel Plating | |
MSWTS | MSWTSK | SUSXM7 | - |
MSWTP | - | PEEK | - |
Part Number |
MSWTJ MSWTSK3 |

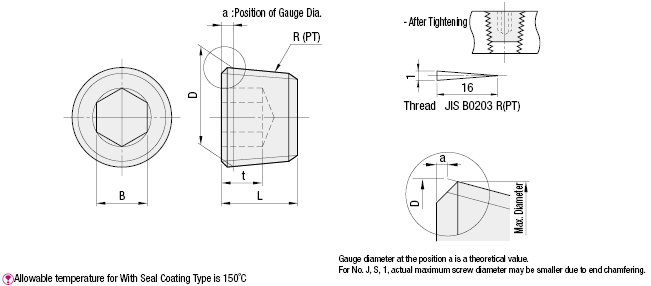

Part Number | D | a | L | B | t | R (PT) | ||
Type | No. | |||||||
MSWT MSWTM | *J | 7.723 | 0.45 | 6 | 4 | 3.0 | 1/16 | |
*S | 7.779 | 0.47 | 6.4 | 4+0.03 -0.032 | 3.1 | |||
(Without Thread Coating) MSWT MSWTM MSWTS MSWTP | (Thread Coated Type) MSWTK MSWTMK MSWTSK | 1 | 9.728 | 0.45 (1.5) | 7 (8) | 5 | 3.5 (5) | 1/8 |
2 | 13.157 | 0.7 (1.8) | 8.9 (11) | 6 | 4.5 (7.6) | 1/4 | ||
3 | 16.662 | 0.7 (2.0) | 10 (12) | 8 | 5 (8) | 3/8 | ||
4 | 20.955 | 0.9 | 12 | 10 | 6 | 1/2 | ||
6 | 26.441 | 14 | 14 | 7 | 3/4 | |||
8 | 33.249 | 1.1 | 16.5 | 17 | 9 | 1 |
Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Material | Nominal of Thread Rc (PT) or T or T1 or Q or Q1 | Surface Treatment | Nominal of Thread (PT) | Seal Coating |
---|---|---|---|---|---|---|---|---|---|---|---|
฿ 19.11 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/8B(6A) | Black Oxide | 1(R1/8) | Not Provided | |
฿ 21.84 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/4B(8A) | Black Oxide | 2(R1/4) | Not Provided | |
฿ 27.30 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/8B(10A) | Black Oxide | 3(R3/8) | Not Provided | |
฿ 36.85 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/2B(15A) | - | 4(R1/2) | - | |
฿ 80.08 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/4B(20A) | - | 6(R3/4) | - | |
฿ 133.31 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1B(25A) | - | 8 (R1) | - | |
฿ 43.22 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/16 | Black Oxide | J (R1/16) | Not Provided | |
฿ 39.13 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/8B(6A) | Black Oxide | 1(R1/8) | Provided | |
฿ 56.88 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/4B(8A) | Black Oxide | 2(R1/4) | Provided | |
฿ 75.08 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/8B(10A) | Black Oxide | 3(R3/8) | Provided | |
฿ 101.92 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/2B(15A) | Black Oxide | 4(R1/2) | Provided | |
฿ 171.99 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/4B(20A) | Black Oxide | 6(R3/4) | Provided | |
฿ 254.80 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1B(25A) | Black Oxide | 8 (R1) | Provided | |
฿ 36.86 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/8B(6A) | Electroless Nickel Plating | 1(R1/8) | Not Provided | |
฿ 43.23 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/4B(8A) | Electroless Nickel Plating | 2(R1/4) | Not Provided | |
฿ 54.60 | PIPES/VALVES/SEALS | 1 Piece(s) | Available | 3 Day(s) | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/8B(10A) | Electroless Nickel Plating | 3(R3/8) | Not Provided | |
฿ 76.44 | SCREWPLUG | 1 Piece(s) | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/2B(15A) | Electroless Nickel Plating | 4(R1/2) | Not Provided | ||
฿ 120.58 | SCREWPLUG | 1 Piece(s) | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/4B(20A) | Electroless Nickel Plating | 6(R3/4) | Not Provided | ||
฿ 230.23 | SCREWPLUG | 1 Piece(s) | Available | 3 Day(s) | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1B(25A) | Electroless Nickel Plating | 8 (R1) | Not Provided | |
฿ 43.23 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/16 | Electroless Nickel Plating | J (R1/16) | Not Provided | |
฿ 95.55 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/8B(6A) | Electroless Nickel Plating | 1(R1/8) | Provided | |
฿ 118.30 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/4B(8A) | Electroless Nickel Plating | 2(R1/4) | Provided | |
฿ 136.50 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/8B(10A) | Electroless Nickel Plating | 3(R3/8) | Provided | |
฿ 150.15 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/2B(15A) | Electroless Nickel Plating | 4(R1/2) | Provided | |
฿ 186.55 | SCREW PLUG | 1 Piece(s) | Available | 3 Day(s) | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 3/4B(20A) | Electroless Nickel Plating | 6(R3/4) | Provided | |
฿ 259.35 | SCREW PLUG | 1 Piece(s) | Available | 3 Day(s) | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1B(25A) | Electroless Nickel Plating | 8 (R1) | Provided | |
฿ 43.23 | SCREWPLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/16 | Electroless Nickel Plating | S (R1/16) | Not Provided | |
฿ 141.05 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | PEEK | 1/8B(6A) | - | 1(R1/8) | Not Provided | |
฿ 191.10 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | PEEK | 1/4B(8A) | - | 2(R1/4) | Not Provided | |
฿ 222.95 | SCREW PLUG | 1 Piece(s) | Available | 3 Day(s) | 10 | PEEK | 3/8B(10A) | - | 3(R3/8) | Not Provided | |
฿ 43.22 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Steel] Alloy Steels for Machine Structure・Carbon Steels for Cold Heading | 1/16 | Black Oxide | S (R1/16) | Not Provided | |
฿ 52.33 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/8B(6A) | - | 1(R1/8) | Not Provided | |
฿ 100.10 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/4B(8A) | - | 2(R1/4) | Not Provided | |
฿ 131.95 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 3/8B(10A) | - | 3(R3/8) | Not Provided | |
฿ 200.20 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/2B(15A) | - | 4(R1/2) | Not Provided | |
฿ 409.50 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 3/4B(20A) | - | 6(R3/4) | Not Provided | |
฿ 728.00 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1B(25A) | - | 8 (R1) | - | |
฿ 150.15 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/8B(6A) | - | 1(R1/8) | Provided | |
฿ 186.55 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/4B(8A) | - | 2(R1/4) | Provided | |
฿ 241.15 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 3/8B(10A) | - | 3(R3/8) | Provided | |
฿ 268.45 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1/2B(15A) | - | 4(R1/2) | Provided | |
฿ 582.40 | SCREW PLUG | 1 Piece(s) | Same day | 10 | [Stainless Steel] SUSXM7 | 3/4B(20A) | - | 6(R3/4) | Provided | ||
฿ 828.10 | SCREW PLUG | 1 Piece(s) | Available | Same day | 10 | [Stainless Steel] SUSXM7 | 1B(25A) | - | 8 (R1) | Provided |
Loading...
Connecting Shape | Plug | Connection Type | Screws | Connecting Thread Type (1) | R |
---|---|---|---|---|---|
Type | Fitting |
