Air Blow Nozzle. Male/Female Thread, Knurling, Terminal Block, Non-Annealed
Brand :
MISUMI
Caution
- The price list on this page is as of April 2023. For the latest price, please click the "Confirm Price" button after confirming the part number.
Product Description
◆Features: You can choose from male thread (annealed or non-annealed), female thread (annealed or non-annealed), knurled iris (annealed), or terminal block (annealed).
*Annealed pipes with an outer diameter of 1.0 to 3.0 can be bent by hand. (Outer diameter 4.0 or more is not allowed)
The minimum bending radius is outer diameter x 3, and please bend carefully to avoid applying stress to the brazed part.
◆Air source: Compressor◆Injection shape: Point◆Material: SUS304
From August 2021, we will be adding nominal size standards.

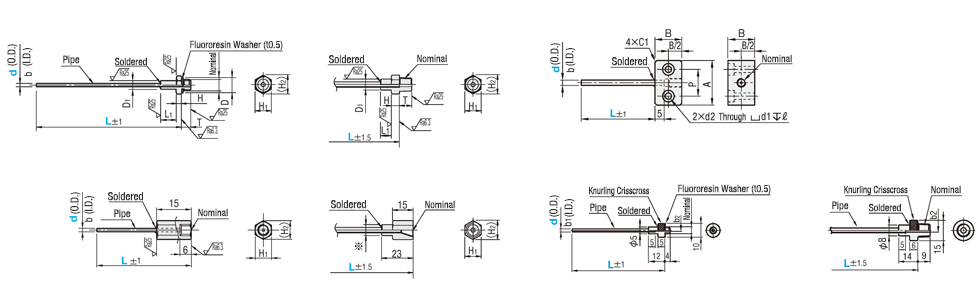

● Threaded Type (When Nominal = 3, 5 or 6)
(When Nominal = 0.5, 1 or 2)
● Terminal Block Type
● Tapped Type (When Nominal = 3, 5 or 6)
(When Nominal = 1 or 2)
● Crisscross Knurled Type (When Nominal = 5)
(When Nominal = 1)
* Nominal 1: ø8, Nominal 2: ⌀10
| Male Threaded | Tapped | Terminal Block | Knurling Crisscross | [M] Material | [H] Hardness | |||
| Annealing | No Annealing | Annealing | No Annealing | Annealing | ||||
| L Fixed | ABNZ | ABNZN | ABNZM | ABNZMN | ABTA | ABNK | Main Body, Pipe SUS304 | Annealing HV200 or Less No Annealing HV250 to 380 |
| L Configurable | ABNZL | ABNZNL | ABNZML | ABNZMNL | ABTAL | ABNX | ||
Specifications / Overview
[ ! ] The annealed pipe of d = 1.0 to 3.0 can be manually bent (not applicable when d = 4.0 or more).
Be careful to bend referring to rough standard of minimum bending radius; O.D. x 3.
Annealed pipe is available for Straight Type.
[ ! ] An industrial cutter can cut the pipe, rolling it.
[ ! ] Main body may be discolored due to heat by brazing.
Be careful to bend referring to rough standard of minimum bending radius; O.D. x 3.
Annealed pipe is available for Straight Type.
[ ! ] An industrial cutter can cut the pipe, rolling it.
[ ! ] Main body may be discolored due to heat by brazing.
