Configure

Part number has not been determine

(1,530 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

SGGA6A-[30-2000/1]

Material Shape No. (O.D. D) Paint Color Overall Length L type CAD Days to Ship

Specification/Dimensions

Material
- SUS304TP
- SUS316TP
- STPG370(Sch40)
- STPG370(Sch80)
- SGP
- SGP (White)
Clear
Shape
- F (One End Threaded, One End 45ﾟ Cut)
- G (One End 45ﾟ Cut)
- A (One End Threaded, One End Tapped)
- C (Straight)
- D (One End Threaded)
- E (One End Tapped)
- P (Both Ends Threaded)
- W (Both Ends Tapped)
Clear
No. (O.D. D)(Ø)
- 6A (10.5)
- 8A(13.8)
- 10A(17.3)
- 15A(21.7)
- 20A(27.2)
- 25A(34.0)
- 32A(42.7)
- 40A(48.6)
- 50A(60.5)
Clear
Paint Color
- B (Black)
- BL (Blue)
- BR (Brown)
- No
- R (Dark Red)
- W (White)
- Y (Light Yellow)
Clear
Overall Length L(mm)
500
[30-2000/1mm Unit(s)]
Clear
type
- SGGA
- SGGC
- SGGD
- SGGE
- SGGF
- SGGG
- SGGP
- SGGW
- SGHPA
- SGHPC
- SGHPD
- SGHPE
- SGHPF
- SGHPG
- SGHPP
- SGHPW
- SGPA
- SGPC
- SGPD
- SGPE
- SGPF
- SGPG
- SGPP
- SGPPK
- SGPW
- STPGA
- STPGC
- STPGD
- STPGE
- STPGF
- STPGG
- STPGP
- STPGW
- SUTA
- SUTC
- SUTD
- SUTE
- SUTF
- SUTG
- SUTP
- SUTPK
- SUTS□
- SUTW
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

Same day

3 Day(s) or Less

5 Day(s) or Less

6 Day(s) or Less

7 Day(s) or Less
Clear

Specify Alterations

Steel Pipes/Plain/Metric Thread

Name: Steel Pipes/Plain/Metric Thread
Brand: MISUMI
Availability: PreOrder

Click this image to zoom it.

Move the mouse over or click the image to zoom

Compare This Product

Volume Discount

Brand :

MISUMI

Part Number :

SGGA6A-[30-2000/1]

SGGA6A-B-[30-1500/1]

SGGA6A-BL-[30-1500/1]

SGGA6A-BR-[30-1500/1]

SGGA6A-R-[30-1500/1]

SGGA6A-W-[30-1500/1]

SGGA6A-Y-[30-1500/1]

SGGA8A-[40-2000/1]

SGGA8A-B-[40-1500/1]

SGGA8A-BL-[40-1500/1]

SGGA8A-BR-[40-1500/1]

SGGA8A-R-[40-1500/1]

SGGA8A-W-[40-1500/1]

SGGA8A-Y-[40-1500/1]

SGGA10A-[40-2000/1]

SGGA10A-B-[40-1500/1]

SGGA10A-BL-[40-1500/1]

SGGA10A-BR-[40-1500/1]

SGGA10A-R-[40-1500/1]

SGGA10A-W-[40-1500/1]

SGGA6A-[30-2000/1]

Price :

---
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)Caution

There may be rust on the inner surface of SGG_.

Product Description

[Features]·You can specify the L dimension length for the L dimension specification type. ·L dimension fixed type, C shape, unpainted only.

Part Number	[ M ] Material	Standard	Usage	[ S ] Surface Treatment
SGG_	SGP	JIS G3452	Low Operating Pressure Steam - Water - Oil - Gas - Pneumatic Hollow	-
SGP_ _	SGPW	JIS G3442	Hollows for draining water - air conditioning etc.	Zinc Plating
SUT_ _	SUS304TP	JIS G3459	Corrosion Resistant Hollows - Low Temperature - High Temperature	-
SUTS_	SUS316TP	JIS G3459		-
STPG_	STPG370 (Sch40)	JIS G3454	Pressure Pipes to be used under 350°C	-
SGHP_	STPG370 (Sch80)	JIS G3454	Pressure Pipes to be used under 350°C	-

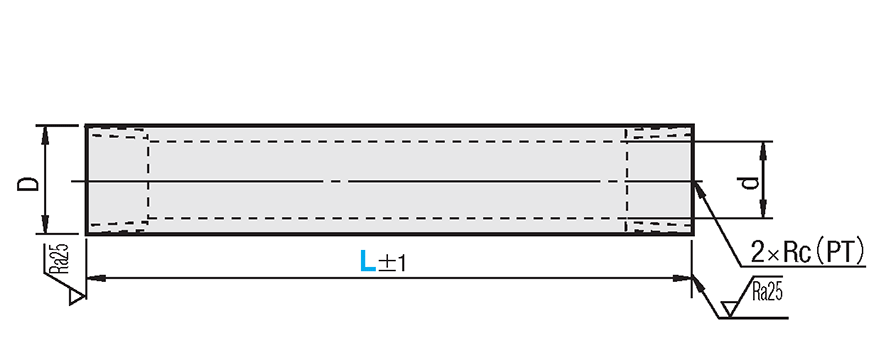

Specifications

Part Number

SUTPK10A

Part Number	-	Coating Color	-	L
SGGP8A SUTD15A	-	BR	- -	200 500

■L Dimension Selectable (C-Shape / Unpainted)

Part Number		L	SGPPK		SUTPK		SGPPK		SUTPK
Part Number			SGPPK		SUTPK		Unit Price	Volume Discount Rate	Unit Price	Volume Discount Rate
Type	No.		D	d	D	d	Qty. 1~9	Qty. 10~	Qty. 1~9	Qty. 10~
SGPPK (SGPW) SUTPK (SUS304TP)	6A	500	-	-	10.5	5.7	-	-
	8A		13.8	9.2	13.8	7.8
	10A		17.3	12.7	17.3	10.9
	15A		21.7	16.1	21.7	16.1
	20A		27.2	21.6	27.2	21.4
	25A		34.0	27.6	34.0	27.2

Alterations

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

1
2
3
4
5
Next >>

Part Number
SGGA6A-[30-2000/1]
SGGA6A-B-[30-1500/1]
SGGA6A-BL-[30-1500/1]
SGGA6A-BR-[30-1500/1]
SGGA6A-R-[30-1500/1]
SGGA6A-W-[30-1500/1]
SGGA6A-Y-[30-1500/1]
SGGA8A-[40-2000/1]
SGGA8A-B-[40-1500/1]
SGGA8A-BL-[40-1500/1]
SGGA8A-BR-[40-1500/1]
SGGA8A-R-[40-1500/1]
SGGA8A-W-[40-1500/1]
SGGA8A-Y-[40-1500/1]
SGGA10A-[40-2000/1]
SGGA10A-B-[40-1500/1]
SGGA10A-BL-[40-1500/1]
SGGA10A-BR-[40-1500/1]
SGGA10A-R-[40-1500/1]
SGGA10A-W-[40-1500/1]
SGGA10A-Y-[40-1500/1]
SGGA15A-[50-2000/1]
SGGA15A-B-[50-1500/1]
SGGA15A-BL-[50-1500/1]
SGGA15A-BR-[50-1500/1]
SGGA15A-R-[50-1500/1]
SGGA15A-W-[50-1500/1]
SGGA15A-Y-[50-1500/1]
SGGA20A-[50-2000/1]
SGGA20A-B-[50-1500/1]
SGGA20A-BL-[50-1500/1]
SGGA20A-BR-[50-1500/1]
SGGA20A-R-[50-1500/1]
SGGA20A-W-[50-1500/1]
SGGA20A-Y-[50-1500/1]
SGGA25A-[60-2000/1]
SGGA25A-B-[60-1500/1]
SGGA25A-BL-[60-1500/1]
SGGA25A-BR-[60-1500/1]
SGGA25A-R-[60-1500/1]
SGGA25A-W-[60-1500/1]
SGGA25A-Y-[60-1500/1]
SGGA32A-[60-2000/1]
SGGA40A-[60-2000/1]
SGGC6A-[30-2000/1]
SGGC6A-B-[30-1500/1]
SGGC6A-BL-[30-1500/1]
SGGC6A-BR-[30-1500/1]
SGGC6A-R-[30-1500/1]
SGGC6A-W-[30-1500/1]
SGGC6A-Y-[30-1500/1]
SGGC8A-[40-2000/1]
SGGC8A-B-[40-1500/1]
SGGC8A-BL-[40-1500/1]
SGGC8A-BR-[40-1500/1]
SGGC8A-R-[40-1500/1]
SGGC8A-W-[40-1500/1]
SGGC8A-Y-[40-1500/1]
SGGC10A-[40-2000/1]
SGGC10A-B-[40-1500/1]
SGGC10A-BL-[40-1500/1]
SGGC10A-BR-[40-1500/1]
SGGC10A-R-[40-1500/1]
SGGC10A-W-[40-1500/1]
SGGC10A-Y-[40-1500/1]
SGGC15A-[50-2000/1]
SGGC15A-B-[50-1500/1]
SGGC15A-BL-[50-1500/1]
SGGC15A-BR-[50-1500/1]
SGGC15A-R-[50-1500/1]
SGGC15A-W-[50-1500/1]
SGGC15A-Y-[50-1500/1]
SGGC20A-[50-2000/1]
SGGC20A-B-[50-1500/1]
SGGC20A-BL-[50-1500/1]
SGGC20A-BR-[50-1500/1]
SGGC20A-R-[50-1500/1]
SGGC20A-W-[50-1500/1]
SGGC20A-Y-[50-1500/1]
SGGC25A-[60-2000/1]
SGGC25A-B-[60-1500/1]
SGGC25A-BL-[60-1500/1]
SGGC25A-BR-[60-1500/1]
SGGC25A-R-[60-1500/1]
SGGC25A-W-[60-1500/1]
SGGC25A-Y-[60-1500/1]
SGGC32A-[60-2000/1]
SGGC40A-[60-2000/1]
SGGC50A-[60-1500/1]
SGGD6A-[30-2000/1]

Price	Name	Minimum Order Qty.	Days to Ship	Material	Shape	No. (O.D. D) (Ø)	Paint Color	Overall Length L (mm)
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	No	30 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	B (Black)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	BL (Blue)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	BR (Brown)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	R (Dark Red)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	W (White)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	6A (10.5)	Y (Light Yellow)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	No	40 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	B (Black)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	BL (Blue)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	BR (Brown)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	R (Dark Red)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	W (White)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	8A(13.8)	Y (Light Yellow)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	No	40 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	B (Black)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	BL (Blue)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	BR (Brown)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	R (Dark Red)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	W (White)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	10A(17.3)	Y (Light Yellow)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	No	50 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	B (Black)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	BL (Blue)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	BR (Brown)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	R (Dark Red)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	W (White)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	15A(21.7)	Y (Light Yellow)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	No	50 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	B (Black)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	BL (Blue)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	BR (Brown)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	R (Dark Red)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	W (White)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	20A(27.2)	Y (Light Yellow)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	B (Black)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	BL (Blue)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	BR (Brown)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	R (Dark Red)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	W (White)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	A (One End Threaded, One End Tapped)	25A(34.0)	Y (Light Yellow)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	32A(42.7)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	A (One End Threaded, One End Tapped)	40A(48.6)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	6A (10.5)	No	30 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	B (Black)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	BL (Blue)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	BR (Brown)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	R (Dark Red)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	W (White)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	6A (10.5)	Y (Light Yellow)	30 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	8A(13.8)	No	40 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	B (Black)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	BL (Blue)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	BR (Brown)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	R (Dark Red)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	W (White)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	8A(13.8)	Y (Light Yellow)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	10A(17.3)	No	40 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	B (Black)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	BL (Blue)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	BR (Brown)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	R (Dark Red)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	W (White)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	10A(17.3)	Y (Light Yellow)	40 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	15A(21.7)	No	50 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	B (Black)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	BL (Blue)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	BR (Brown)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	R (Dark Red)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	W (White)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	15A(21.7)	Y (Light Yellow)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	20A(27.2)	No	50 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	B (Black)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	BL (Blue)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	BR (Brown)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	R (Dark Red)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	W (White)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	20A(27.2)	Y (Light Yellow)	50 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	25A(34.0)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	B (Black)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	BL (Blue)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	BR (Brown)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	R (Dark Red)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	W (White)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	7 Day(s)	SGP	C (Straight)	25A(34.0)	Y (Light Yellow)	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	32A(42.7)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	40A(48.6)	No	60 ～ 2000
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	C (Straight)	50A(60.5)	No	60 ～ 1500
-	STEEL PIPES	1 Piece(s)	5 Day(s)	SGP	D (One End Threaded)	6A (10.5)	No	30 ～ 2000

1
2
3
4
5
Next >>

More Information

[ ! ]L Dimensions in ( ) are for F and G Shape. L Dimensions 1501 ~ 2000 is available for SGG_, SGP_ and SUT_ only (Except No.50A).
[ ! ]Painted pipes are available for No.6A~25A (L dimension 1500 or less) of SGG_, SUT_, STPG_ and SGHP_. [ ! ]The shapes A, W and E are not available for No.50A.

[ ! ]Painted Hollows are not available for L dimension 1501~2000.
