Urethane / Rubber Blocks
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
3rd day shipping is available for Urethane and Rubber Block Configurable Types.

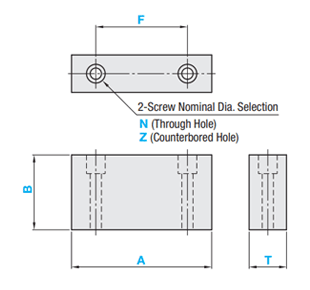

Dimensional Drawing
| Type | Material | Tolerance | |||||||
| BUTSN | Ether Polyurethane | T Dimension Tolerance: |
| ||||||
| BUTHN | |||||||||
| BUTM | Este Polyurethane | A, B Dimension Tolerance: |
| ||||||
| BUTL | |||||||||
| BRBNM | Nitrile Rubber | T Dimension Tolerance: |
| ||||||
| BRBCM | Chloroprene Rubber | ||||||||
| BRBFM | Fluororubber | ||||||||
| BRBSM | Silicon Rubber | A, B Dimension Tolerance: |
| ||||||
| BRBAM | |||||||||
| BUNSE | Low Elasticity Rubber | ||||||||
[ ! ] d (d1) + 5 ≤ F ≤ A - d (d1) - 5
| Hole Machining Details | ||||||||||||||||||||||||||||||||
 N (Through Hole) Z (Counterbored Hole)
|
| Type | [ M ]Material | [ H ]Hardness | Color |
| BUTSN | Ether Polyurethane | Shore A95 | Natural Color |
| BUTHN | Shore A90 | Natural Color | |
| BUTM | Ester Polyurethane | Shore A70 | Natural Color |
| BUTL | Shore A50 | Natural Color | |
| BRBNM | Nitrile Rubber | Shore A70 | Black |
| BRBCM | Chloroprene Rubber | Shore A65 | Black |
| BRBFM | Fluoro Rubber | Shore A80 | Black |
| BRBSM | Silicon Rubber | Shore A70 | Light Gray |
| BRBAM | Silicon Rubber | Shore A50 | Milky White |
| BUNSE | Low Elasticity Rubber | Shore A33 | Black |
