Highly Abrasion Resistant Sheets, Heat Resistant Urethane Sheets - Vulkollan® / Abrasion Resistant Urethane
Brand :
MISUMI
Caution
- Regarding the seal, prolonged storage or use in oil or solvent operating environments may result in decreased adhesive strength. We recommend using the product as soon as possible after it arrives.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
High-performance urethane sheets such as Vulkollan, which has six times the abrasion resistance of standard urethane, and urethane, which has heat resistance up to 120 degrees.
Dimensional Drawing
■A Selectable Type
Square Type
Band Type
(Thickness
0.14 to 0.17 mm)
For Vulkollan, 300 +5
0
(Thickness 0.14 to 0.17 mm)

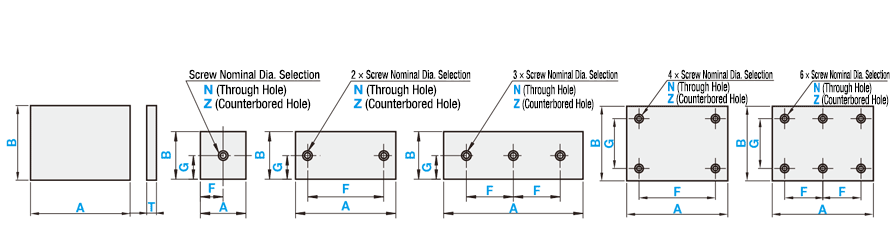

■ A, B Configurable
Standard
Standard
Hole Type
-1 Hole- 1H
-2 Holes- 2H
-3 Holes- 3H
-4 Holes- 4H
-6 Holes- 6H
[ ! ]Vulkollan® may experience discoloration with time, but physical property and characteristics remain unchanged.
[ ! ]For Adhesive Type T4 or more, the adhesive tape may tear from the body. Please use it as temporary fixing, or in combination with bolt fixing.
[ ! ]Temperature limit for seals is 80℃.
■ Accuracy Standards
T Tolerance
| T | Tolerance |
| 1 to 4 | ±0.3 |
| 5 to 10 | ±0.4 |
| 15 to 30 | ±0.5 |
A, B Tolerance
| A·B | Tolerance |
| 200 or Less | ±0.5 |
| 201 to 300 | ±1.0 |
| 301 to 400 | ±1.2 |
| 401 to 500 | ±1.5 |
| Hole Machining Details | |||||||||||||||||||||||||||||
 N (Through Hole) Z (Counterbored Hole) |
| ||||||||||||||||||||||||||||
Product Specifications
| A Selectable Type | A, B Configurable | [M] Material | [H] Hardness | Color | ||
| No Adhesive | Adhesive | No Adhesive | Adhesive | |||
| VULHS | VULHSA | VULHSS | VULHSSA | Super Abrasion Resistant Urethane Vulkollan® (Ester Polyurethane) | Shore A92 | Beige |
| VULMS | VULMSA | VULMSS | VULMSSA | Shore A68 | ||
| UTEXH | UTEXHA | UTEXHS | UTEXHSA | Abrasion Resistant Urethane (Ester Polyurethane) | Shore A90 | Dark Brown |
| UTEXM | UTEXMA | UTEXMS | UTEXMSA | Shore A70 | ||
| UTHHS | UTHHSA | UTHHSS | UTHHSSA | Heat | Shore A90 | Brown |
